FW16: Shift / Enter key -> power dead, screen stripes

Community Support
,
1

Story on how I fixed it, so others can learn :slight_smile:

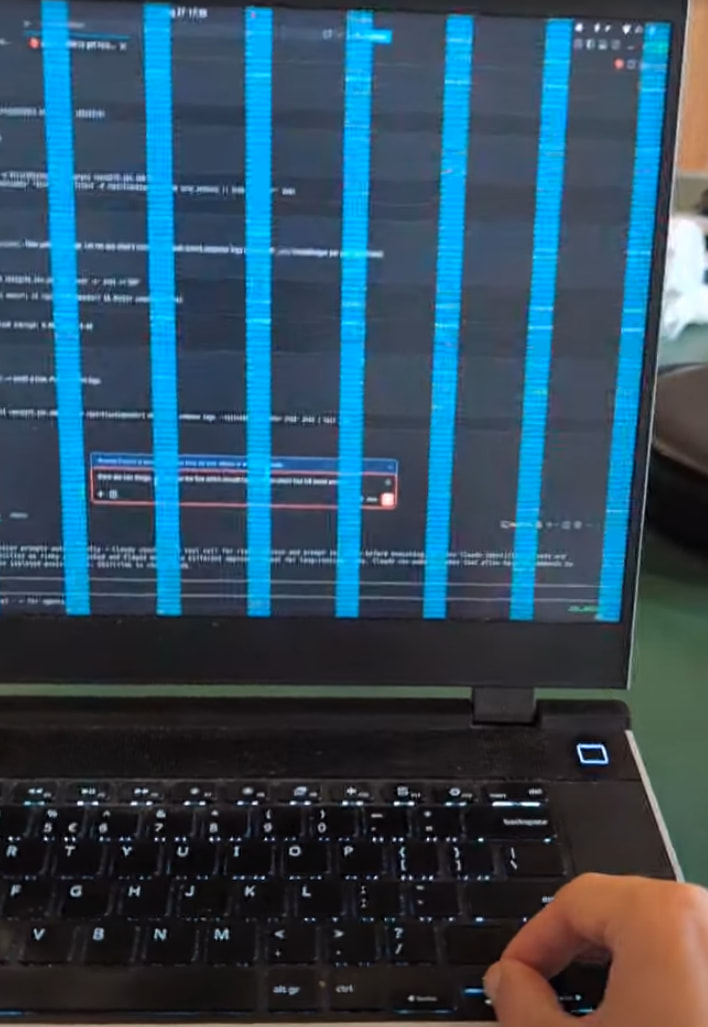

Pressing Shift + Enter would either kill my laptop or create these crazy scary stripes.

image708×1027 139 KB

This was pretty random. It would happen only sometimes. Quite rarely, making debugging annoying. A few times, it crashed completely. Then it started getting worse.

At one point, the the power button stopped responding. After reassembly: “Input Module Connector Board not detected”, then “Input Modules not detected”. This was a blessing in disguise because it forced me to debug properly.

Diagnosis:

  • The cable labelled (1) was loose at the OTHER end. Not the one you put in when building the laptop, but the other one. It’s a ZIF so when fixing google first on how to open them because it’s very delicate and you can damage it. There is a lever and press mechanism in ZIFs.

PXL_20260904_091331254
PXL_20260904_0913312541920×2550 585 KB

Stripes went away once those were seated. The tilted connector was probably pushing on the display cable next to it.

2

Adding these since i could only add 2 on the OP

PXL_20260904_091227175
PXL_20260904_0912271751920×2550 624 KB

PXL_20260903_221718844
PXL_20260903_2217188441920×2550 897 KB

3

Nice debugging!

4

Thanks for the debug and follow up. Things may have gotten shifted in transits.

If the issue is still resolved in a few days, please modify your title with the [resolved] tag at the front and ping me. We will mark it as resolved as well so you get credit on your profile badges.

5

this was resolved btw. idk how to add [resolved tag]

6

Hey there, I’m not entirely sure how to mark this as resolved. I could not find the pencil icon or any other edit button on this post.

But thanks! No worries about the credit or badges. Just sharing this in case others have a similar issue.
