What about an HDMI in?

Creators & Developers
21

I won’t mind the latency @nrp

23

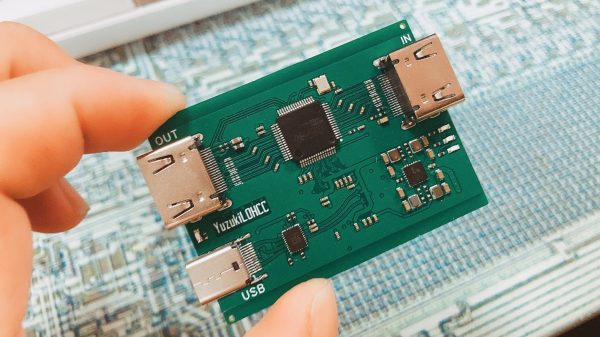

This article on Hackaday looks interesting: delete that HDMI Out and I want to believe this will fit in a Framework accessory footprint…

2 Likes
24

Ah right: same person also have an HDMI Capture-only board as well…

25

Ooh! That looks just right for a larger expansion card like the ethernet one. Getting a tiny capture card in an expansion card form factor would be a dream.

26

I found a device from MicroCenter that has the necessary ports, usb c to hdmi in, but it looks a little long. https://www.microcenter.com/product/645805/inland-hdmi-to-usb-a-c-video-capture-dongle

1 Like
27

I don’t know if this directly applies or could be adapted to an expansion card format but I thought the announcement might be of interest to some of you:

“eEver Technology, a subsidiary of eTron Technology, has launched the EJ523D 4Kp60 audio and video capture and streaming processor with a USB 3.2 interface, along with a reference platform currently showcased at COMPUTEX 2023.”
https://www.cnx-software.com/2023/05/31/eever-ej523d-chip-enables-4kp60-video-capture-or-streaming-over-usb-3-2/

1 Like
28

Man that chip alone looks bigger than an expansion card but the capabilities do sound nice

29

Wow, yea. Good luck getting that into an expansion card.

1050×790 93.6 KB

1 Like
30

Yeah, perhaps HDMI-IN in an i/o array as an expansion bay.

Dreaming bigger…an expansion bay geared towards media and content i/o:

  • HDMI-IN
  • HDMI-Out
  • audio line in
  • audio out

Or just a mega connectivity expansion bay…caveat, I have no idea on bandwidth constraints. Any/all of these:

  • Dual USB-A
  • Dual USB-C
  • 10Gb ethernet
  • full size SD Card reader
  • HDMI-IN
  • HDMI-Out

I would absolutely pick up one of these before buying a dGPU expansion bay.

1 Like
31

I like that too! I would pay for that! I bought the dual SSD expansion but this sounds way too cool!

32

I have an Android tablet that has this functionality. Lenovo Yoga Tab 13. I use it both as an Android tablet and as a workbench monitor for troubleshooting Chromebooks and as a second screen sometimes. The way Lenovo appears to have implemented this seems to be that Android doesn’t see the devices plugged in via the micro-HDMI-in.

The tablet was touted as being able to be used as a portable screen for mobile gaming devices like a Switch or even for consoles in some situations. It’s not a perfect solution. The image is a tiny bit fuzzy, but it has made my job easier in a number of ways with the help of a HDMI Female to micro-HDMI-male and a USB-C male to HDMI male cable.

If my Framework could serve a similar purpose, I’d snap one of these up in a second…and recommend them to my boss for the rest of the team.

1 Like
33

It’s a shame because CES has come and gone and while I didn’t look exhaustively, there didn’t seem to be any new chipsets/consumer facing products released around HDMI Capture.

1 Like
34

:star_struck: my switch need it！Other laptops have abandoned HDMI In，I don‘t know why……

1 Like
35

There’s a reference design here: GitHub - ultrasemier/ms213x_community

2 Likes
36

@Maxwell_Edwards, that’s requested in an implementation-inspecific manner elsewhere:
