The company claims the miniStack STX can run at 770 MB/s of “real” performance through the SSD drive and my own testing can confirm those numbers are pretty accurate. This means even if the drives connected inside of the miniStack STX are capable of faster performance, due to the limitations of the Thunderbolt PCI-E channel allocations, the max read/write speeds will be limited to about 770 MB/s. It would be amazing to be able to get peak performance out of the drives installed, but the 770 MB/s speeds are still more than enough for the kinds of work photographers and even many videographers are doing.
I recently learned about two docks that (AFAIU) use the PCIe x1 port to attach a 2.5Gbit ethernet adapter. See this blog for an excellent teardown of both:
There exist some USB-C docks that only support USB 2.0 (480 Mb/s) so that they can have 4 lanes (8 wires) of DisplayPort.
Using or not using DP-alt-mode does not affect USB speed for a USB-C dock since the 4 lines (8 wires) are divided between USB and DisplayPort so that they don’t affect each other (unlike Thunderbolt/USB4 where DisplayPort and USB share bandwidth and high DisplayPort bandwidth can lower USB bandwidth).
USB-C displays are a kind of USB-C dock. Some displays can switch between 4 lanes of DisplayPort + USB 2.0 and 2 lanes of DisplayPort + USB 3.0 or USB 3.1 gen 2.
A Titan Ridge or Goshen Ridge dock will usually limit all their capabilities to USB devices only so that all the devices can easily work with a non-Thunderbolt host. this means they share a 10 Gbps USB connection.
Alpine Ridge based TB3 docks will use their 4 PCIe lanes for various types of controllers (USB, Ethernet, SATA, FireWire, etc.), For example, the CalDigit TS3+ has 4 USB controllers allowing ≈22 Gbps of USB data instead of just 10 Gbps (but the TS3+ only has one port that can do full 10 Gbps - the downstream Thunderbolt 4 port; it has another 10 Gbps port but it’s limited by 8 Gbps PCIe; the other ports are limited by 4 Gbps PCIe).
25.92 Gbps. The limit is 40Gbps for Thunderbolt but usually the limit for DisplayPort in Thunderbolt is 34.56 Gbps. I can’t think of a way to get more than 34.56 Gbps of DisplayPort except Apple’s method of doing two HBR3 x4 links for the XDR.
An MST hub may be a more efficient method of dividing DisplayPort bandwidth than Thunderbolt. With Thunderbolt, you have to dedicate two DisplayPort links with fixed link rate/link width. With MST, there’s only one DisplayPort link but you can have multiple streams that share the link. Also, an MST hub can use DSC compression on the input and decompress the output for displays that don’t support DSC.
This is a property of the host, not dock. There’s a few TB3 hosts (Macs / PCs) that are limited to 16 Gbps PCIe. All TB4 hosts have full PCIe bandwidth (at least up to what the Thunderbolt connection supports per port which is something like 22 to 24 or 25 Gbps).
The host always has a USB controller. The TB4 dock has a USB controller which gets used when the upstream device or host is Thunderbolt 3.
M1 Macs have a slower than expected USB controller, so you may want to separate a TB4 dock from the TB4 host using a TB3 device to disable USB tunnelling. I haven’t seen benchmarks for USB tunnelling from other TB4 hosts such as Tiger Lake.
This is not true for TB3. A TB3 dock may have a USB Billboard Device that can notify the OS when it is connected to a non-Thunderbolt port.
The Dell UP3218K (8K60) and Acer XV273K (4K144) are examples of displays that can use dual HBR3 x4 connections (they are dual tile displays). Now that DSC exists, we probably won’t be seeing tiled displays like those anymore. The LG UltraFine 5K and UltraWide HDR 5K2K displays have tiled modes over Thunderbolt. All the displays have single tile modes. The Apple Studio Display (5K60) and XDR display (6K60) are duel tiled displays (using Thunderbolt) but also have a single tile mode that can use DSC.
Seems not. My Dell WD19TB with Titan Ridge uses its internal USB2 Controller. USB2 over wire is only used in USB-C Backcompat mode.
Those docks would then loose functionality on pure USB4 ports. Great to see Lenovo going the extra mile and also providing a USB ethernet controller for this case.
I meant that, as long as the docks do not use PCIe internally, all features can work the same on a USB4 host without PCIe tunneling, or even via USB3/USB-C (with slower display connections).
I have a Samsung 970 Evo in a USB3 10G enclosure that can do 800MB/s, so this speed alone would also be possible over USB3. But it would be smarter to use PCIe, because than that bandwidth is not directly shared with the SATA drive / other USB ports. Since they state SATA works also over USB-A, but NVMe not, it looks like PCIe though.
So, even my Titan Ridge Notebook, that launched with the security levels and explicit confirmation, was silently upgraded to relying on DMA protection. First, on Windows 10, it connected the Titan Ridge Dock as “Allow Once” automatically and with the Windows 11 update, these security levels are now gone, titan ridge just seems to be trusted (at least if it is not using PCIe) and always recognized, even before login, same for the TB3 dock on TB4 host.
I have no idea how secure Intels DMA protection actually is. From reading other sources, it seems like the IO-Groups that are protected from each other and limited in memory address ranges are rather coarse, so could include other devices / drivers and do include other linux kernel data that lands in the same page by accident (no idea whether Windows is smart enough to align its data so that that does not happed). And I do not know whether a Titan Ridge controller could be manipulated enough in firmware to do malicious DMA accesses from the trusted USB controller.
But PCIe BootROMs should be even more dangerous because they can inject code, instead of being just an optional boot target selected by BIOS or user. Although Secure Boot should validate the signature of the BootROM and measured boot via TPM should detect injections in the boot process and refuse handing out keys such as bitlocker.
TL;DR:
Maple, Goshen, Titan (dock-version) seem to have the same USB3 controllers. When acting as PCIe UBS3 controller, using 2 TB-Outs (or 1 TB-Out + 1 USB3 10G) I could achieve 650MB/s + 300MB/s on USB drives that can each sustain 800MB/s and 400MB/s on their own. Goshen Ridge was a perfect USB3 hub, distributing the 800MB/s between both drives if attached via USB4/TB4. Great, compared to the USB3 hubs inside my WD19TB, which fell to <300MB/s for each drive when used simultaneously. Full bandwidth could be reached when attaching one drive via USB4 and the other via PCIe/Titan Ridge USB3 (behind USB4)
Qestion, if I have a Thunderbolt 4 dock and a Thunderbolt 3 eGPU does the Thunderbolt bandwidth get divided between each of the controllers (each side of the motherboard) or only if multiple Thunderbolt connected to the same controller (same side)?
Each controller can sustain the full TB connection speed for each port.
But that alone does not do anything. Relevant for all applications is the performance of the connections tunneled through TB.
I believe that the lowest limit is usually not what the controllers can route, but the connections to the rest of the system (USB2, PCIe, DP). Although there have been reports of performance issues / stuttering when using the older TB3 controllers both as PCIe bridge in an eGPU enclosure as well as USB controller for further peripherals (both need to be transferred via PCIe though, so it might not even have been a TB issue).
I do not know / have no measurements, whether Tiger Lake can actually support the full bandwidth of two 4x PCIe 3.0 connections to each TB controller simultaneously. It could potentially achieve even higher throughput, as these controllers are on-die and there might not actually be a reason to strictly limit this connection to the same speed as a physical PCIe connection.
But if you are using a Dock (presumably to attach monitors) and eGPU at the same time, the eGPU will have to transfer every frame through PCIe tunneled through TB back to the CPU/iGPU which will then output those frames via DP through the other TB controller.
So no matter where you attach the dock, you further limit the already limited PCIe bandwidth between eGPU and CPU, by not using the display outputs of a GPU. How much bandwidth is used for this depends solely on resolution and frame rate of the output calculated by the eGPU. USB2 is handled distinctly with USB4/TB4 so USB2 usage on the dock should not change anything. USB3 usage on the same TB controller will probably go through PCIe just as with the discrete TB controllers. @all can anybody confirm whether USB3 devices on Tiger Lakes USB4 ports appear on the system-wide USB3 controller or on the TB controllers own USB3 controller just like with Maple Ridge? (with USBTreeView for example)
You can look at the many benchmarks available looking into performance loss when using the integrated display of a notebook with eGPU instead of the direct display output of the eGPU.
Thanks for your replies again, I’ve updated both my posts with some additional notes based on your info.
As an overall observation while reading these replies, I realized that bandwidth and output number limitations with all this tunneling really mostly come from the hardware interfaces present on the controllers/routers used (e.g. dual 4xHBR2 interfaces on Alpine Ridge, dual 4xHBR3 interfaces on Titan Ridge). These limitations are mostly linked to the hardware used, not so much limited by the protocol (though the protocols do seem to typically specify minimum bandwidth/features for each port).
I suspect that also the PCIe bandwidth limits (often documented as 16Gbps for TB3 and 32Gbps for TB4) and the 10Gbps vs 20Gbps USB3 tunneling specified for USB4 is really not a protocol limitation, but a limitation of the interfaces on (currently available) hardware (or in the case of USB, maybe on the USB controller integrated into the TB controller).
Understanding this really helps to make sense of the otherwise seemingly random limitations on the number of outputs and bandwidth, so I added a section dedicated to explaining this to my blogpost (“Understanding tunneling and bandwidth limitations”)
I’m not sure I follow this. Where does this 22Gbps limit come from? It sounds like all USB goes through PCIe, so is this the total PCIe bandwidth? But I thought that as only 16Gbps for TB3? Also, why this 8/4Gbps limits? Does Alpine Ridge have HW interface for 4 lanes of PCIe, one at 8Gbps and three at 4Gbps or so?
Isn’t this also a property of the protocol? I.e. if you connect a TB3 dock to a TB4 port, you’d be limited to 16Gbps PCIe whatever your connect downstream? Or can TB3 also happily tunnel 32Gbps (or 22/24/25 as you say), but it’s just that TB3 controllers currently (and probably forever) have just 16Gbps (PCIe 3.0 x2?) uplink to the CPU?
Wow, when I thought this couldn’t get more complex in terms of options you have, then there’s this :-p Makes sense, though I’m not sure where and if at all I should put this in my post…
This is rather unexpected, but I guess it might be because TB3 evolved from TB1/2 over a DP connector without USB 2.0 wires.
I read that and was slightly confused. Duplicating functionality like that seems wasteful and a recipe for problems even, and I wondered why not just use USB-connected 2.5Gbps ethernet (USB has enough bandwidth), but I guess this might boil down to hardware availability (PCIe allows using any existing PCIe ethernet chip), and/or bandwidth considerations (PCIe might be more efficient, and does not share bandwidth with other USB devices).
So IIUC, what you’re saying means that DMA protection is even possible with TB3, it’s just that TB4 requires it for hosts (and software) to be TB4 certified? And that means that it is really irrelevant when deciding what dock to get for a Framework laptop since you’ll get the protection in any case?
Doesn’t TB support routing DP data from the eGPU directly to a display attached to the same dock (or even somewhere in the same TB tree), without going through the host? I cannot find anything definitive on this, but skimming the USB4 spec I do see that docks/hubs can contain DP IN adapters (which would allow attaching the eGPU DP output to the TB network), and I cannot find any explicit restriction that all tunnels should either start or end at the host (though all examples I can find do involve the host)…
This is probably only the certification threshold for TB3, as there existed TB3 controllers with only PCIe x2 interface (and only 1 DP input). In addition there are a few TB3 devices, that only attached x2 PCIe lanes, because of chipset limitations. The host controllers with 2 DP inputs all had PCIe 3.0 x4 input (Solution Briefs | Thunderbolt Technology Community).
TB4 only raised the certification threshold to the full bandwidth.
Yes. I believe DMA support only depends on the capabilities of the IOMMU, the groups to which IOMMU protection is applied (they seem to not be granular enough to protect every PCIe device separately, but the motherboard / BIOS groups some PCIe devices together with shared IOMMU protection). And all core drivers for the platform must be compliant with DMA protection, as in, that they support more modern structures, where the OS can separate the different drivers into different memory regions mapped differently/not at all for each IOMMU group.
I do not know whether reversed flow direction is supported here (from eGPU back up the topology, possibly through the host controller).
But the classic eGPU enclosures have just a normal GPU with all native GPU ports exposed out the back. Getting access to DP would require those DP GPU outputs be somehow wired back to the TB controller, which I have never seen claimed by any reviewer or producer, even with eGPUs with integrated GPU instead of regular PCIe slotted desktop GPUs.
A conventional eGPU will be handled the same as integrated hybrid graphics. Windows will copy the frame-buffers from the calculating GPU (possibly only a window, not entire desktop) to the outputting GPU. This takes up PCIe bandwidth (not tested by me, but I do not see why they would develop an entirely different solution. Also this explains the performance loss when not attaching displays to the eGPU, basically the same as with integrated hybrid graphics on a narrow PCIe connection).
In M1, all Thunderbolt ports are a separate Thunderbolt controller. In Alpine Ridge, Titan Ridge, Maple Ridge, Ice Lake, and Tiger Lake, a Thunderbolt controller has two ports (usually two per side of a laptop in the case of Ice Lake and Tiger Lake). Each Thunderbolt controller has two DisplayPort In Adapters, so in Ice Lake and Tiger Lake, you can only connect two displays per side.
With integrated Thunderbolt implementations such as M1, Ice Lake, and Tiger Lake, I believe there’s no division of PCIe bandwidth because the upstream of the Thunderbolt controller isn’t really PCIe. So you can software RAID-0 two Thunderbolt NVMe together and get the same forty-something Gbps bandwidth from any two Thunderbolt ports but you can’t get 22Gbps from all ports at the same time (at least in the case of Ice Lake - I haven’t seen benchmarks for M1 or Tiger Lake).
In your case, Instead of two Thunderbolt NVMe, you want to connect a dock and an eGPU. Like I said above, you won’t see a difference no matter which two ports you select. If you look at Device Manager in Windows and view by Connection Type (or use HWiNFO), you’ll see that each Thunderbolt port is a separate PCIe root port (but it’s not really PCIe so you can ignore the ridiculous/inaccurate/meaningless PCIe 1.0 2.5 GT/s link speed).
You’ll definitely get better performance if the display you are outputting to is connected directly to the GPU in the eGPU enclosure. See the eGPU.io website for benchmarks and info.
All eGPUs are Thunderbolt 3 (Alpine Ridge or Titan Ridge) so their USB is controlled by their USB controllers which will use tunnelled PCIe. I don’t think I’ve seen a tunnelled USB on Tiger Lake (using a Thunderbolt 4 dock/hub) so a screenshot of Device Manager or HWiNFO or USBTreeView would be interesting.
The dual HBR3 problem with Titan Ridge is similar to the dual HBR2 problem with Falcon Ridge (Thunderbolt 2). Alpine Ridge is easy since it can only do HBR2 and two HBR2 can’t exceed 40 Gbps. But if you connect with a 20 Gbps cable, then you have the Falcon Ridge problem.
It’s a limit of PCIe data through Thunderbolt. 22Gbps is one of the earliest numbers given by Intel in their marketing materials. It is 2750 MB/s which is a number often seen on the product pages for Thunderbolt NVMe storage devices. This is sometimes rounded up to 2800 MB/s. There have been benchmarks that reach 3000 MB/s (24 Gbps) and sometimes exceed that so the max is something less than 25 Gbps. The difference between 22 and 25 Gbps may be a setting in the firmware of the Thunderbolt peripheral. For example, eGPU enclosures had unexpected lower H2D or D2H bandwidth (host to device or device to host) benchmarks as measured by CL!ng.app in macOS or AIDA64 GPGPU Benchmark or CUDA-Z in Windows. A firmware update of the eGPU enclosure would often correct this. But in the USB4 spec there’s mention of a tradeoff between bandwidth and latency in regards to PCIe and USB tunnelling. So maybe the eGPUs with the lower bandwidth were tuned more for latency?
A Thunderbolt 3 host controller (Alpine Ridge or Titan Ridge) has a max upstream link of PCIe 3.0 x4 (31.5 Gbps) same as Maple Ridge (Ice Lake and Tiger Lake don’t have this limit since they are integrated Thunderbolt controllers). The host controller is a PCIe device, so really, you can connect it to any PCIe connection all the way down to PCIe 1.0 x1 (2 Gbps). Some PC laptops used PCIe 3.0 x2 (15.75 Gbps) (some Mac laptops too) or PCIe 2.0 x4 (16 Gbps) which saves power or lanes. Regardless of the PCIe limit, the Thunderbolt controller can still do 34.56Gbps of DisplayPort if it has two DisplayPort connections to the GPU so it’s not a complete waste.
There’s two Fresco Logic FL1100 USB controllers which each use a PCIe 2.0 x1 connection (5 GT/s * 8b/10b = 4 Gbps PCIe, or 5 Gbps * 8b/10b = 4 Gbps USB). The ASMedia ASM1142 USB controller uses a PCIe 3.0 x1 connection (8 GT/s * 128b/130b = 7.877 Gbps). The USB controller in the Alpine Ridge Thunderbolt controller is not limited by PCIe (10 Gbps * 128b/132b = 9.7 Gbps USB). Actually, in regards to the FL1100, although both PCIe and USB are limited to 4 Gbps, the extra PCIe overhead compared to USB overhead makes it slower than USB 3.0 from the ASM1142 or Alpine Ridge. In regards to the differences between 5 and 10 Gbps USB, the 10 Gbps USB is more than twice as fast because it uses a more efficient encoding.
Alpine Ridge and Titan Ridge in a Thunderbolt peripheral have 4 PCIe 3.0 downstream lanes. They can be divided by the manufacture as x1x1x1, x2x1x1, x2x2, or x4. The TS3+ uses x1x1x1x1 and the fourth PCIe lane to the Alpine Ridge Thunderbolt controller is used by an Intel Gigabit Ethernet controller. A PCIe device can connect using any link rate up to the max supported by the PCIe device and the root port or downstream bridge device it is connected to. You can change the link rate while they are connected (using pciutils) so you can simulate a lower speed device if you like. On a Mac Pro 2008, a PCIe 3.0 device installed in a PCIe 2.0 slot will boot as PCIe 1.0 link rate but you can set it to PCIe 2.0 using pciutils.
Maybe there are situations where having more USB controllers is beneficial. It depends on the capabilities of the USB controller that would be used for USB tunnelling compared to the USB controller in the downstream Thunderbolt peripheral.
I think it’s just following the USB-C Alt Mode spec.
The Thunderbolt 3 device doesn’t do USB so it shouldn’t try to do USB except to provide a USB 2.0 billboard device in case the USB-C port can’t switch from USB mode to Thunderbolt alt mode. Windows will see the billboard device and display a message. The same may exist in USB-C to DisplayPort adapters and cables.
The only eGPUs that use the DisplayPort In Adapter of their Thunderbolt controller are the Blackmagic eGPUs and the Sonnet eGPU Breakaway Puck RX 5500 XT/5700. I don’t know if these work with Windows. I don’t know if the DisplayPort from the eGPU can be tunnelled upstream or only downstream (I guess it’s a decision made by Apple’s software Thunderbolt connection manager). I don’t know if the DisplayPort from the host Thunderbolt controller can be tunnelled downstream of the eGPU such that there are 4 tunnelled DisplayPort connections downstream of the eGPU.
I do know one DisplayPort tunnelling trick where the DisplayPort from one host is tunnelled to the DisplayPort of another host’s Thunderbolt controller. This is called Thunderbolt Target Display Mode which allows an old Thunderbolt iMac (1440p) to be a display for another Mac. So it seems you can have software that pokes some arbitrary DisplayPort paths even across domains. The iMac though has a switch to move its display connection from its GPU to a DisplayPort Out Adapter of its Thunderbolt controller so it can receive the tunnelled DisplayPort. I don’t know if the DisplayPort tunnelling path could extend deeper into the iMac’s Thunderbolt domain.
Not what I was asking, I was already aware of that. And Tiger Lake should very much support tunneling of USB3 through USB4, as that is precisely what the USB4 spec demands. What I meant was the following: Maple, Alpine and Titan Ridge host controllers are their own USB3-PCIe controllers. If you directly attach a USB3 device to one of those, it appears on the TB controllers internal USB3 controller. But Titan Ridge and Maple Ridge forward USB2 signals. (See all Titan Ridge AICs having an additional USB2 input connected to the motherboard). Consequently USB2 devices attached to my Titan Ridge notebook and my Maple Ridge desktop appear not on the TB controllers own USB controller, as they did with Alpine Ridge or my Titan Ridge dock, but on the chipsets controller. When using USB4 hubs on Maple Ridge, nothing changes, USB2 devices appear an the chipset controller, USB3 devices on the TB controller. Only my Alpine Ridge AIC uses its own USB3 controller also for USB2 devices.
My question was, due to Tiger Lake having on-die TB controllers whether USB2 and 3 are handled just as with Maple Ridge, in that every TB controller has its own USB3 controller, plus the chipset having its own (3rd) hard wired USB3 controller on the same die. Is USB2 still forwarded to the chipsets’ own controller?. This would give an indication, of how closely related the implementations actually are, because I am assuming that the reason for still having dual-port TB controllers is also simply because that is what they were going to use for the dedicated controllers and so they can share more HW and just strip away the physical PCIe parts, because backwards compatibility and configurable lanes are not needed on-die.
Then I would presume, that although the uplink might not be limited to 32 GBit/s, the TB controller itself is most likely still somewhat PCIe bandwidth limited, because it never had a need to achieve much higher than 32 GBit/s throughput. Apple showcases, that if you design a TB controller only for on-die purposes, there is no need in doing dual-port controllers, because every subcomponent is either per-port anyway, or can be combined into one component for the whole die, or whatever amount is still feasible.

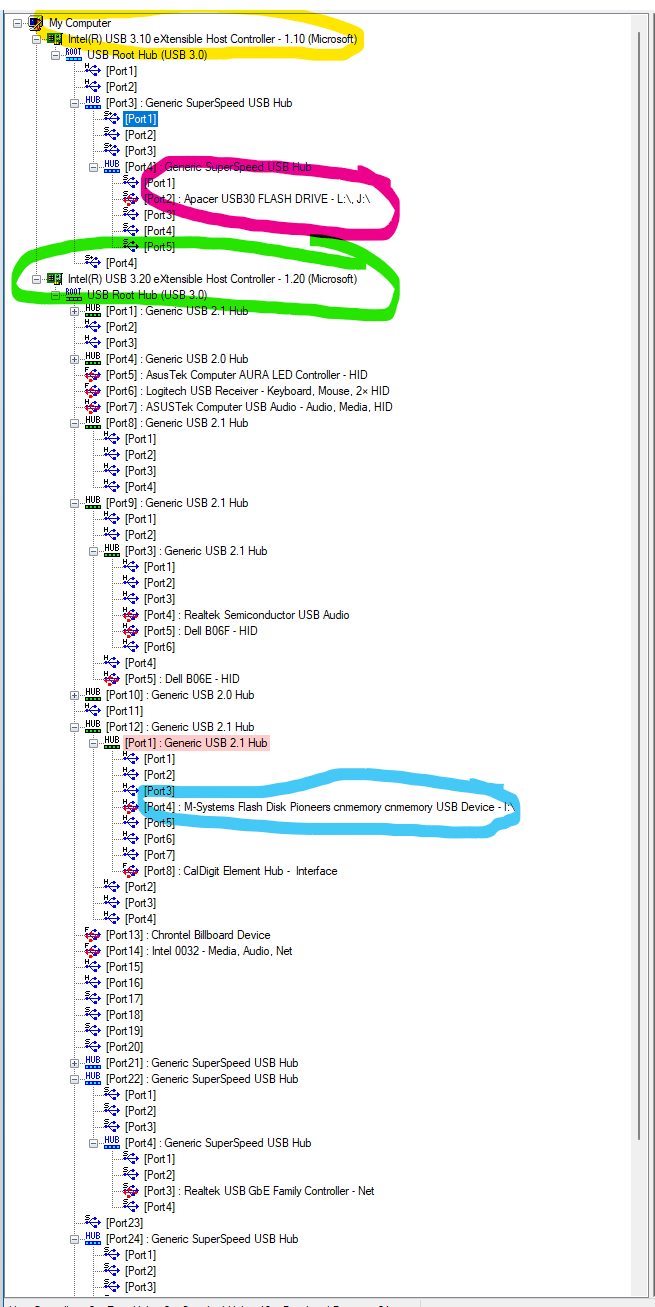

Yellow is Maple Ridge USB-Controller, Green is Alder Lake Chipset USB-Controller.
Blue is a USB2 stick, Magenta a USB3 stick.
Both sticks are attached the USB3-A ports of the CalDigit ElementHub behind Maple Ridge in the screenshot (physical ports right next to each other). The cursor highlight shows that USBTreeView detects the paired USB2 and USB3 ports of the CalDigit Hub, even though the billboard device only shows up on USB2.
As you can see, the USB2 stick shows up on the chipset controller in both cases (I am only allowed one picture per post, so the other one showing both attached to the chipset via front USB3-A ports is missing).
I speculated previously, that this is at least in part to achieve the energy efficient waking up from keyboard and mouse etc. as the TB controller needs no active PCIe connection to forward USB2 data to the chipset and the existing wake-on-USB HW inside the chipset can handle it in basically the same way as without TB.
When connecting my WD19TB to a simple USB3 port, a USB2 device behind the dock shows up on the USB2 hierarchy of the chipset and not the USB3 hierarchy, so presumably Titan Ridge can still forward USB2 signals in back-compat mode, just not use them in TB3 mode. As to why USB2 lines remain unused in TB3, I do not know. But since it is optional for TB4 fiber cables to even support USB2, it might have just been to simplify the different possible configurations with different types of TB cables. Or like Matthiijs speculated, due to TB’s history.
I think the dual port decision was based more on the number of available DisplayPort connections in relation to the number of Thunderbolt ports. The Tiger Lake GPU only has 4 possible DisplayPort connections. The simplest method of allowing two DisplayPort connections for a single Thunderbolt port (a requirement of Thunderbolt 4) when there are four Thunderbolt ports is to pair two Thunderbolt ports to a controller which has two of the DisplayPort connections. Then the controller can output the two DisplayPort connections to the same port (to meet the Thunderbolt 4 requirement) or to different ports. Intel would have needed to add more complexity to get 4 DisplayPort connections to a single side of the laptop. Apple’s Mac Pro 2019 has a lot of DisplayPort muxes to get DisplayPort from the two MPX module slots (4 DisplayPort connections per slot) to the two built-in Thunderbolt controllers (two DisplayPort connections each).
M1 Macs are weird - For example, the Mac Studio can have 8 DisplayPort connections, two per Thunderbolt port, but can only connect 4 displays (up to two displays per Thunderbolt port to meet the Thunderbolt 4 requirement) - the extra DisplayPort connections can only be used for tiled displays like the LG UltraFine 5K or Dell UP2715K. I don’t know if there’s a 9th DisplayPort connection for the HDMI port.
There is a limit but it’s not exactly PCIe since none of the upstream is real PCIe. There’s the tunnelled PCIe limit and there’s whatever limit that exists in the Tiger Lake CPU. The TB controller needs to allow the PCIe bandwidth of at least one port (22-25Gbps). Ice Lake can do around 38 Gbps from all ports https://egpu.io/forums/laptop-computing/ice-lake-cpu-on-die-thunderbolt-3-controller-bandwidth/paged/2/
(I think ATTO multi-disk non-raid test would be better than AJA in macOS, or AmorphousDiskMark for software RAID 0)
There’s a separate root port for each Thunderbolt port. Since the Thunderbolt controller is integrated, the root ports don’t have an upstream PCIe device that is limited to 8 GT/s x4.
There’s a USB 3.x controller specifically for the Thunderbolt ports but the question about USB 2.0 for Tiger Lake is not answered here.
I wonder how fast a software raid of 4 USB NVMe devices can get when connected to the Tiger Lake Thunderbolt USB controller?
The Thunderbolt NHI #0 and #1 are the two Thunderbolt controllers responsible for setting up paths for PCIe and DisplayPort tunnelling and for doing Thunderbolt networking (using DMA tunnelling).
An image from Device Manager or HWiNFO would be best because they include both PCIe and USB devices (and other devices). ioreg or IORegistryExplorer.app in macOS are similar but also include drivers (so does Device Manager but not in the connection view).
Right, the Thunderbolt 3 device I was referring to uses Alpine Ridge. Titan Ridge (like Goshen Ridge) peripherals usually can connect as USB 3.x with DisplayPort Alt Mode devices to non-Thunderbolt USB-C ports. And with USB 3.x there is usually always also a USB 2.x connection and this connection may be made with a different USB controller than the the Thunderbolt USB controller that is used for the USB 3.x connection.
Can someone advise how/if we can use the Framework laptop with a Thunderbolt display? I’ve had good luck using my DIY Framework with a variety of Thunderbolt docks and eGPU. But has anyone use it with a Thunderbolt Display, like Apple’s Pro Display XDR?
I have this display, but can’t get any video output from any of the Frameworks USB-C ports. Normally, DisplayPort needs to be tunneled into the Thunderbolt output/stream, but I’m unclear on how to make this happen, as it doesn’t seem automatic.
I used a different Windows Thunderbolt PC with this same display (4K60Hz output, as expected), but I can’t get the Framework to recognize it.
I haven’t got much hands-on experience, nor suggestions for debugging tools yet (haven’t received my framework yet), but maybe others have some ideas. However, might I suggest to create a new topic for this (or maybe the mods could move your post to a new topic), to keep this topic centered around the technology involved, rather that a specific display and debugging advice?
Then plug in the dock and check dmesg for debug output.
For example, with my Caldigit TS4, this gives:
[37305.688348] thunderbolt 0000:00:0d.2: current switch config:
[37305.688357] thunderbolt 0000:00:0d.2: USB4 Switch: 8087:b26 (Revision: 3, TB Version: 32)
[37305.688364] thunderbolt 0000:00:0d.2: Max Port Number: 19
[37305.688367] thunderbolt 0000:00:0d.2: Config:
[37305.688369] thunderbolt 0000:00:0d.2: Upstream Port Number: 1 Depth: 1 Route String: 0x1 Enabled: 1, PlugEventsDelay: 254ms
[37305.688375] thunderbolt 0000:00:0d.2: unknown1: 0x0 unknown4: 0x0
[37305.747299] thunderbolt 0000:00:0d.2: 1: reading drom (length: 0x9e)
[37305.764321] thunderbolt 0000:00:0d.2: 1: DROM version: 1
[37305.792245] thunderbolt 0000:00:0d.2: 1: uid: 0x8087a68941184600
[37305.818400] thunderbolt 0000:00:0d.2: Port 1: 8086:b26 (Revision: 3, TB Version: 1, Type: Port (0x1))
[37305.818413] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[37305.818418] thunderbolt 0000:00:0d.2: Max counters: 16
[37305.818422] thunderbolt 0000:00:0d.2: NFC Credits: 0xc7800000
[37305.818425] thunderbolt 0000:00:0d.2: Credits (total/control): 120/2
[37305.849770] thunderbolt 0000:00:0d.2: Port 2: 8086:b26 (Revision: 3, TB Version: 1, Type: Port (0x1))
[37305.849783] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[37305.849787] thunderbolt 0000:00:0d.2: Max counters: 16
[37305.849790] thunderbolt 0000:00:0d.2: NFC Credits: 0x80000000
[37305.849795] thunderbolt 0000:00:0d.2: Credits (total/control): 0/2
[37305.875913] thunderbolt 0000:00:0d.2: Port 3: 8086:b26 (Revision: 3, TB Version: 1, Type: Port (0x1))
[37305.875929] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[37305.875933] thunderbolt 0000:00:0d.2: Max counters: 16
[37305.875936] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[37305.875940] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[37305.907278] thunderbolt 0000:00:0d.2: Port 4: 8086:b26 (Revision: 3, TB Version: 1, Type: Port (0x1))
[37305.907286] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[37305.907289] thunderbolt 0000:00:0d.2: Max counters: 16
[37305.907291] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[37305.907294] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[37305.907298] thunderbolt 0000:00:0d.2: 1:5: disabled by eeprom
[37305.907301] thunderbolt 0000:00:0d.2: 1:6: disabled by eeprom
[37305.919796] pcieport 0000:00:07.0: pciehp: Slot(0): Card present
[37305.919805] pcieport 0000:00:07.0: pciehp: Slot(0): Link Up
[37305.933423] thunderbolt 0000:00:0d.2: Port 7: 8086:b26 (Revision: 3, TB Version: 1, Type: Port (0x1))
[37305.933435] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[37305.933440] thunderbolt 0000:00:0d.2: Max counters: 16
[37305.933443] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[37305.933446] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[37305.964804] thunderbolt 0000:00:0d.2: Port 8: 8086:b26 (Revision: 3, TB Version: 1, Type: Port (0x1))
[37305.964818] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[37305.964823] thunderbolt 0000:00:0d.2: Max counters: 16
[37305.964826] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[37305.964829] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[37305.970033] thunderbolt 0000:00:0d.2: Port 9: 8086:b26 (Revision: 3, TB Version: 1, Type: PCIe (0x100102))
[37305.970044] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37305.970049] thunderbolt 0000:00:0d.2: Max counters: 2
[37305.970052] thunderbolt 0000:00:0d.2: NFC Credits: 0x40800000
[37305.970056] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37305.975274] thunderbolt 0000:00:0d.2: Port 10: 8086:b26 (Revision: 3, TB Version: 1, Type: PCIe (0x100101))
[37305.975282] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37305.975285] thunderbolt 0000:00:0d.2: Max counters: 2
[37305.975288] thunderbolt 0000:00:0d.2: NFC Credits: 0x40800000
[37305.975291] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37305.975295] thunderbolt 0000:00:0d.2: 1:b: disabled by eeprom
[37305.980508] thunderbolt 0000:00:0d.2: Port 12: 8086:b26 (Revision: 3, TB Version: 1, Type: PCIe (0x100101))
[37305.980523] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37305.980528] thunderbolt 0000:00:0d.2: Max counters: 2
[37305.980531] thunderbolt 0000:00:0d.2: NFC Credits: 0x40800000
[37305.980534] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37305.990960] thunderbolt 0000:00:0d.2: Port 13: 8086:b26 (Revision: 1, TB Version: 1, Type: DP/HDMI (0xe0102))
[37305.990970] thunderbolt 0000:00:0d.2: Max hop id (in/out): 9/9
[37305.990974] thunderbolt 0000:00:0d.2: Max counters: 2
[37305.990977] thunderbolt 0000:00:0d.2: NFC Credits: 0x40800000
[37305.990980] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37306.035751] thunderbolt 0000:00:0d.2: Port 14: 8086:b26 (Revision: 1, TB Version: 1, Type: DP/HDMI (0xe0102))
[37306.035766] thunderbolt 0000:00:0d.2: Max hop id (in/out): 9/9
[37306.035771] thunderbolt 0000:00:0d.2: Max counters: 2
[37306.035775] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[37306.035779] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37306.051922] thunderbolt 0000:00:0d.2: Port 15: 8086:b26 (Revision: 1, TB Version: 1, Type: Inactive (0x0))
[37306.051938] thunderbolt 0000:00:0d.2: Max hop id (in/out): 0/0
[37306.051943] thunderbolt 0000:00:0d.2: Max counters: 0
[37306.051946] thunderbolt 0000:00:0d.2: NFC Credits: 0x0
[37306.051950] thunderbolt 0000:00:0d.2: Credits (total/control): 0/0
[37306.057162] thunderbolt 0000:00:0d.2: Port 16: 8086:b26 (Revision: 3, TB Version: 1, Type: USB (0x200102))
[37306.057172] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37306.057176] thunderbolt 0000:00:0d.2: Max counters: 2
[37306.057179] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[37306.057182] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37306.057422] pci 0000:02:00.0: [8086:0b26] type 01 class 0x060400
[37306.057528] pci 0000:02:00.0: enabling Extended Tags
[37306.057783] pci 0000:02:00.0: supports D1 D2
[37306.057787] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[37306.057996] pci 0000:02:00.0: 8.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x4 link at 0000:00:07.0 (capable of 31.504 Gb/s with 8.0 GT/s PCIe x4 link)
[37306.059200] pci 0000:02:00.0: Adding to iommu group 18
[37306.059427] pcieport 0000:00:07.0: ASPM: current common clock configuration is inconsistent, reconfiguring
[37306.062402] thunderbolt 0000:00:0d.2: Port 17: 8086:b26 (Revision: 3, TB Version: 1, Type: USB (0x200101))
[37306.062415] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37306.062418] thunderbolt 0000:00:0d.2: Max counters: 2
[37306.062422] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[37306.062425] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37306.067619] thunderbolt 0000:00:0d.2: Port 18: 8086:b26 (Revision: 3, TB Version: 1, Type: USB (0x200101))
[37306.067628] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37306.067631] thunderbolt 0000:00:0d.2: Max counters: 2
[37306.067634] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[37306.067637] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37306.072846] thunderbolt 0000:00:0d.2: Port 19: 8086:b26 (Revision: 3, TB Version: 1, Type: USB (0x200101))
[37306.072852] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[37306.072855] thunderbolt 0000:00:0d.2: Max counters: 2
[37306.072858] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[37306.072860] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[37306.073348] pci 0000:02:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[37306.073593] pci 0000:03:00.0: [8086:0b26] type 01 class 0x060400
[37306.073693] pci 0000:03:00.0: enabling Extended Tags
[37306.073954] pci 0000:03:00.0: supports D1 D2
[37306.073957] pci 0000:03:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[37306.074407] pci 0000:03:00.0: Adding to iommu group 19
[37306.074761] pci 0000:03:01.0: [8086:0b26] type 01 class 0x060400
[37306.074862] pci 0000:03:01.0: enabling Extended Tags
[37306.075088] pci 0000:03:01.0: supports D1 D2
[37306.075091] pci 0000:03:01.0: PME# supported from D0 D1 D2 D3hot D3cold
[37306.076409] pci 0000:03:01.0: Adding to iommu group 20
[37306.076662] pci 0000:03:02.0: [8086:0b26] type 01 class 0x060400
[37306.076765] pci 0000:03:02.0: enabling Extended Tags
[37306.077010] pci 0000:03:02.0: supports D1 D2
[37306.077015] pci 0000:03:02.0: PME# supported from D0 D1 D2 D3hot D3cold
[37306.077270] pci 0000:03:02.0: Adding to iommu group 21
[37306.077466] usb 2-1: new SuperSpeed Plus Gen 2x1 USB device number 36 using xhci_hcd
[37306.077538] pci 0000:03:03.0: [8086:0b26] type 01 class 0x060400
[37306.077640] pci 0000:03:03.0: enabling Extended Tags
[37306.077882] pci 0000:03:03.0: supports D1 D2
[37306.077887] pci 0000:03:03.0: PME# supported from D0 D1 D2 D3hot D3cold
[37306.081247] pci 0000:03:03.0: Adding to iommu group 22
[37306.081978] thunderbolt 0-1: new device found, vendor=0x3d device=0x26
[37306.081989] thunderbolt 0-1: CalDigit, Inc. TS4
[37306.082089] pci 0000:03:04.0: [8086:0b26] type 01 class 0x060400
[37306.082250] pci 0000:03:04.0: enabling Extended Tags
[37306.082493] pci 0000:03:04.0: supports D1 D2
[37306.082498] pci 0000:03:04.0: PME# supported from D0 D1 D2 D3hot D3cold
[37306.086186] pci 0000:03:04.0: Adding to iommu group 23
[37306.086481] pci 0000:02:00.0: PCI bridge to [bus 03-2b]
[37306.086500] pci 0000:02:00.0: bridge window [io 0x0000-0x0fff]
[37306.086511] pci 0000:02:00.0: bridge window [mem 0x00000000-0x000fffff]
[37306.086531] pci 0000:02:00.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[37306.086541] pci 0000:03:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[37306.086567] pci 0000:03:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[37306.086590] pci 0000:03:02.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[37306.086610] pci 0000:03:03.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[37306.086633] pci 0000:03:04.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[37306.086834] pci 0000:03:00.0: PCI bridge to [bus 04-2b]
[37306.086849] pci 0000:03:00.0: bridge window [io 0x0000-0x0fff]
[37306.086857] pci 0000:03:00.0: bridge window [mem 0x00000000-0x000fffff]
[37306.086870] pci 0000:03:00.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[37306.086876] pci_bus 0000:04: busn_res: [bus 04-2b] end is updated to 04
[37306.087011] pci 0000:03:01.0: PCI bridge to [bus 05-2b]
[37306.087025] pci 0000:03:01.0: bridge window [io 0x0000-0x0fff]
[37306.087034] pci 0000:03:01.0: bridge window [mem 0x00000000-0x000fffff]
[37306.087048] pci 0000:03:01.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[37306.087053] pci_bus 0000:05: busn_res: [bus 05-2b] end is updated to 11
[37306.087659] pci 0000:03:02.0: PCI bridge to [bus 12-2b]
[37306.087676] pci 0000:03:02.0: bridge window [io 0x0000-0x0fff]
[37306.087686] pci 0000:03:02.0: bridge window [mem 0x00000000-0x000fffff]
[37306.087699] pci 0000:03:02.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[37306.087705] pci_bus 0000:12: busn_res: [bus 12-2b] end is updated to 1e
[37306.087855] pci 0000:03:03.0: PCI bridge to [bus 1f-2b]
[37306.087869] pci 0000:03:03.0: bridge window [io 0x0000-0x0fff]
[37306.087878] pci 0000:03:03.0: bridge window [mem 0x00000000-0x000fffff]
[37306.087891] pci 0000:03:03.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[37306.087896] pci_bus 0000:1f: busn_res: [bus 1f-2b] end is updated to 2a
[37306.090752] pci 0000:2b:00.0: [8086:5502] type 00 class 0x020000
[37306.090798] pci 0000:2b:00.0: reg 0x10: [mem 0x00000000-0x000fffff]
[37306.090852] pci 0000:2b:00.0: reg 0x1c: [mem 0x00000000-0x00003fff]
[37306.091168] pci 0000:2b:00.0: PME# supported from D0 D3hot D3cold
[37306.094787] pci 0000:2b:00.0: Adding to iommu group 24
[37306.101088] thunderbolt 0000:00:0d.2: ICM rtd3 veto=0x00000004
[37306.101692] usb 2-1: New USB device found, idVendor=8087, idProduct=0b40, bcdDevice=12.34
[37306.101703] usb 2-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[37306.101708] usb 2-1: Product: USB3.0 Hub
[37306.101711] usb 2-1: Manufacturer: Intel Corporation.
[37306.102774] hub 2-1:1.0: USB hub found
[37306.102908] hub 2-1:1.0: 4 ports detected
[37306.105362] pci 0000:03:04.0: PCI bridge to [bus 2b]
[37306.105380] pci 0000:03:04.0: bridge window [io 0x0000-0x0fff]
[37306.105389] pci 0000:03:04.0: bridge window [mem 0x00000000-0x000fffff]
[37306.105402] pci 0000:03:04.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[37306.105409] pci_bus 0000:2b: busn_res: [bus 2b] end is updated to 2b
[37306.105421] pci_bus 0000:03: busn_res: [bus 03-2b] end is updated to 2b
[37306.105435] pci 0000:03:01.0: bridge window [mem 0x00100000-0x001fffff 64bit pref] to [bus 05-11] add_size 100000 add_align 100000
[37306.105442] pci 0000:03:01.0: bridge window [mem 0x00100000-0x001fffff] to [bus 05-11] add_size 100000 add_align 100000
[37306.105449] pci 0000:03:02.0: bridge window [mem 0x00100000-0x001fffff 64bit pref] to [bus 12-1e] add_size 100000 add_align 100000
[37306.105456] pci 0000:03:02.0: bridge window [mem 0x00100000-0x001fffff] to [bus 12-1e] add_size 100000 add_align 100000
[37306.105462] pci 0000:03:03.0: bridge window [mem 0x00100000-0x001fffff 64bit pref] to [bus 1f-2a] add_size 100000 add_align 100000
[37306.105468] pci 0000:03:03.0: bridge window [mem 0x00100000-0x001fffff] to [bus 1f-2a] add_size 100000 add_align 100000
[37306.105480] pci 0000:02:00.0: bridge window [mem 0x00100000-0x005fffff 64bit pref] to [bus 03-2b] add_size 300000 add_align 100000
[37306.105488] pci 0000:02:00.0: bridge window [mem 0x00100000-0x006fffff] to [bus 03-2b] add_size 300000 add_align 100000
[37306.105506] pci 0000:02:00.0: BAR 14: assigned [mem 0x7c000000-0x881fffff]
[37306.105513] pci 0000:02:00.0: BAR 15: assigned [mem 0x6000000000-0x601c1fffff 64bit pref]
[37306.105518] pci 0000:02:00.0: BAR 13: assigned [io 0x4000-0x7fff]
[37306.105529] pci 0000:03:00.0: BAR 14: assigned [mem 0x7c000000-0x7c0fffff]
[37306.105533] pci 0000:03:00.0: BAR 15: assigned [mem 0x6000000000-0x60000fffff 64bit pref]
[37306.105538] pci 0000:03:01.0: BAR 14: assigned [mem 0x7c100000-0x800aaaa9]
[37306.105543] pci 0000:03:01.0: BAR 15: assigned [mem 0x6000100000-0x6009655554 64bit pref]
[37306.105549] pci 0000:03:02.0: BAR 14: assigned [mem 0x80100000-0x84055553]
[37306.105553] pci 0000:03:02.0: BAR 15: assigned [mem 0x6009700000-0x6012baaaa9 64bit pref]
[37306.105559] pci 0000:03:03.0: BAR 14: assigned [mem 0x84100000-0x87fffffd]
[37306.105564] pci 0000:03:03.0: BAR 15: assigned [mem 0x6012c00000-0x601c0ffffe 64bit pref]
[37306.105569] pci 0000:03:04.0: BAR 14: assigned [mem 0x88000000-0x881fffff]
[37306.105575] pci 0000:03:04.0: BAR 15: assigned [mem 0x601c100000-0x601c1fffff 64bit pref]
[37306.105580] pci 0000:03:00.0: BAR 13: assigned [io 0x4000-0x4fff]
[37306.105584] pci 0000:03:01.0: BAR 13: assigned [io 0x5000-0x5aa9]
[37306.105588] pci 0000:03:02.0: BAR 13: assigned [io 0x6000-0x6553]
[37306.105592] pci 0000:03:03.0: BAR 13: assigned [io 0x7000-0x7fff]
[37306.105597] pci 0000:03:04.0: BAR 13: no space for [io size 0x1000]
[37306.105602] pci 0000:03:04.0: BAR 13: failed to assign [io size 0x1000]
[37306.105608] pci 0000:03:00.0: PCI bridge to [bus 04]
[37306.105614] pci 0000:03:00.0: bridge window [io 0x4000-0x4fff]
[37306.105626] pci 0000:03:00.0: bridge window [mem 0x7c000000-0x7c0fffff]
[37306.105634] pci 0000:03:00.0: bridge window [mem 0x6000000000-0x60000fffff 64bit pref]
[37306.105647] pci 0000:03:01.0: PCI bridge to [bus 05-11]
[37306.105654] pci 0000:03:01.0: bridge window [io 0x5000-0x5aa9]
[37306.105665] pci 0000:03:01.0: bridge window [mem 0x7c100000-0x800aaaa9]
[37306.105673] pci 0000:03:01.0: bridge window [mem 0x6000100000-0x6009655554 64bit pref]
[37306.105686] pci 0000:03:02.0: PCI bridge to [bus 12-1e]
[37306.105691] pci 0000:03:02.0: bridge window [io 0x6000-0x6553]
[37306.105701] pci 0000:03:02.0: bridge window [mem 0x80100000-0x84055553]
[37306.105708] pci 0000:03:02.0: bridge window [mem 0x6009700000-0x6012baaaa9 64bit pref]
[37306.105720] pci 0000:03:03.0: PCI bridge to [bus 1f-2a]
[37306.105724] pci 0000:03:03.0: bridge window [io 0x7000-0x7fff]
[37306.105734] pci 0000:03:03.0: bridge window [mem 0x84100000-0x87fffffd]
[37306.105741] pci 0000:03:03.0: bridge window [mem 0x6012c00000-0x601c0ffffe 64bit pref]
[37306.105754] pci 0000:2b:00.0: BAR 0: assigned [mem 0x88000000-0x880fffff]
[37306.105765] pci 0000:2b:00.0: BAR 3: assigned [mem 0x88100000-0x88103fff]
[37306.105775] pci 0000:03:04.0: PCI bridge to [bus 2b]
[37306.105784] pci 0000:03:04.0: bridge window [mem 0x88000000-0x881fffff]
[37306.105792] pci 0000:03:04.0: bridge window [mem 0x601c100000-0x601c1fffff 64bit pref]
[37306.105803] pci 0000:02:00.0: PCI bridge to [bus 03-2b]
[37306.105808] pci 0000:02:00.0: bridge window [io 0x4000-0x7fff]
[37306.105817] pci 0000:02:00.0: bridge window [mem 0x7c000000-0x881fffff]
[37306.105825] pci 0000:02:00.0: bridge window [mem 0x6000000000-0x601c1fffff 64bit pref]
[37306.105836] pcieport 0000:00:07.0: PCI bridge to [bus 02-2b]
[37306.105841] pcieport 0000:00:07.0: bridge window [io 0x4000-0x7fff]
[37306.105847] pcieport 0000:00:07.0: bridge window [mem 0x7c000000-0x881fffff]
[37306.105853] pcieport 0000:00:07.0: bridge window [mem 0x6000000000-0x601c1fffff 64bit pref]
[37306.105860] PCI: No. 2 try to assign unassigned res
[37306.105863] pci 0000:03:00.0: resource 13 [io 0x4000-0x4fff] released
[37306.105867] pci 0000:03:00.0: PCI bridge to [bus 04]
[37306.105879] pci 0000:03:01.0: resource 13 [io 0x5000-0x5aa9] released
[37306.105882] pci 0000:03:01.0: PCI bridge to [bus 05-11]
[37306.105893] pci 0000:03:02.0: resource 13 [io 0x6000-0x6553] released
[37306.105896] pci 0000:03:02.0: PCI bridge to [bus 12-1e]
[37306.105908] pci 0000:03:03.0: resource 13 [io 0x7000-0x7fff] released
[37306.105911] pci 0000:03:03.0: PCI bridge to [bus 1f-2a]
[37306.105922] pci 0000:02:00.0: resource 13 [io 0x4000-0x7fff] released
[37306.105925] pci 0000:02:00.0: PCI bridge to [bus 03-2b]
[37306.105943] pci 0000:02:00.0: BAR 13: assigned [io 0x4000-0x7fff]
[37306.105949] pci 0000:03:00.0: BAR 13: assigned [io 0x4000-0x4fff]
[37306.105953] pci 0000:03:01.0: BAR 13: assigned [io 0x5000-0x5aa9]
[37306.105956] pci 0000:03:02.0: BAR 13: assigned [io 0x6000-0x6553]
[37306.105959] pci 0000:03:03.0: BAR 13: assigned [io 0x7000-0x7fff]
[37306.105963] pci 0000:03:04.0: BAR 13: no space for [io size 0x1000]
[37306.105966] pci 0000:03:04.0: BAR 13: failed to assign [io size 0x1000]
[37306.105969] pci 0000:03:00.0: PCI bridge to [bus 04]
[37306.105974] pci 0000:03:00.0: bridge window [io 0x4000-0x4fff]
[37306.105984] pci 0000:03:00.0: bridge window [mem 0x7c000000-0x7c0fffff]
[37306.105991] pci 0000:03:00.0: bridge window [mem 0x6000000000-0x60000fffff 64bit pref]
[37306.106003] pci 0000:03:01.0: PCI bridge to [bus 05-11]
[37306.106008] pci 0000:03:01.0: bridge window [io 0x5000-0x5aa9]
[37306.106017] pci 0000:03:01.0: bridge window [mem 0x7c100000-0x800aaaa9]
[37306.106024] pci 0000:03:01.0: bridge window [mem 0x6000100000-0x6009655554 64bit pref]
[37306.106036] pci 0000:03:02.0: PCI bridge to [bus 12-1e]
[37306.106041] pci 0000:03:02.0: bridge window [io 0x6000-0x6553]
[37306.106050] pci 0000:03:02.0: bridge window [mem 0x80100000-0x84055553]
[37306.106057] pci 0000:03:02.0: bridge window [mem 0x6009700000-0x6012baaaa9 64bit pref]
[37306.106069] pci 0000:03:03.0: PCI bridge to [bus 1f-2a]
[37306.106073] pci 0000:03:03.0: bridge window [io 0x7000-0x7fff]
[37306.106082] pci 0000:03:03.0: bridge window [mem 0x84100000-0x87fffffd]
[37306.106090] pci 0000:03:03.0: bridge window [mem 0x6012c00000-0x601c0ffffe 64bit pref]
[37306.106102] pci 0000:03:04.0: PCI bridge to [bus 2b]
[37306.106111] pci 0000:03:04.0: bridge window [mem 0x88000000-0x881fffff]
[37306.106120] pci 0000:03:04.0: bridge window [mem 0x601c100000-0x601c1fffff 64bit pref]
[37306.106133] pci 0000:02:00.0: PCI bridge to [bus 03-2b]
[37306.106138] pci 0000:02:00.0: bridge window [io 0x4000-0x7fff]
[37306.106148] pci 0000:02:00.0: bridge window [mem 0x7c000000-0x881fffff]
[37306.106157] pci 0000:02:00.0: bridge window [mem 0x6000000000-0x601c1fffff 64bit pref]
[37306.106170] pcieport 0000:00:07.0: PCI bridge to [bus 02-2b]
[37306.106174] pcieport 0000:00:07.0: bridge window [io 0x4000-0x7fff]
[37306.106180] pcieport 0000:00:07.0: bridge window [mem 0x7c000000-0x881fffff]
[37306.106185] pcieport 0000:00:07.0: bridge window [mem 0x6000000000-0x601c1fffff 64bit pref]
[37306.106293] pcieport 0000:02:00.0: enabling device (0000 -> 0003)
[37306.106909] pcieport 0000:03:00.0: enabling device (0000 -> 0003)
[37306.108105] pcieport 0000:03:01.0: enabling device (0000 -> 0003)
[37306.108568] pcieport 0000:03:01.0: pciehp: Slot #1 AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+ Interlock- NoCompl+ IbPresDis- LLActRep+
[37306.109802] pcieport 0000:03:02.0: enabling device (0000 -> 0003)
[37306.110701] pcieport 0000:03:02.0: pciehp: Slot #2 AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+ Interlock- NoCompl+ IbPresDis- LLActRep+
[37306.116971] pcieport 0000:03:03.0: enabling device (0000 -> 0003)
[37306.117342] usb 3-1: new high-speed USB device number 13 using xhci_hcd
[37306.119011] pcieport 0000:03:03.0: pciehp: Slot #3 AttnBtn- PwrCtrl- MRL- AttnInd- PwrInd- HotPlug+ Surprise+ Interlock- NoCompl+ IbPresDis- LLActRep+
[37306.122683] pcieport 0000:03:04.0: enabling device (0000 -> 0002)
[37306.127261] igc 0000:2b:00.0: enabling device (0000 -> 0002)
[37306.127573] igc 0000:2b:00.0: PCIe PTM not supported by PCIe bus/controller
[37306.185919] pps pps0: new PPS source ptp0
[37306.186081] igc 0000:2b:00.0 (unnamed net_device) (uninitialized): PHC added
[37306.245420] igc 0000:2b:00.0: 4.000 Gb/s available PCIe bandwidth (5.0 GT/s PCIe x1 link)
[37306.245435] igc 0000:2b:00.0 eth0: MAC: 64:4b:f0:37:08:97
[37306.252044] igc 0000:2b:00.0 enp43s0: renamed from eth0
[37306.274115] kauditd_printk_skb: 8 callbacks suppressed
[37306.341933] usb 3-1: New USB device found, idVendor=2188, idProduct=5802, bcdDevice= 1.01
[37306.341945] usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[37306.341949] usb 3-1: Product: TS4 USB2.0 Hub
[37306.341953] usb 3-1: Manufacturer: CalDigit, Inc.
[37306.343133] hub 3-1:1.0: USB hub found
[37306.343206] hub 3-1:1.0: 5 ports detected
[37306.598628] thunderbolt 0000:00:0d.3: control channel starting...
[37306.598640] thunderbolt 0000:00:0d.3: starting TX ring 0
[37306.598650] thunderbolt 0000:00:0d.3: enabling interrupt at register 0x38200 bit 0 (0x0 -> 0x1)
[37306.598658] thunderbolt 0000:00:0d.3: starting RX ring 0
[37306.598665] thunderbolt 0000:00:0d.3: enabling interrupt at register 0x38200 bit 12 (0x1 -> 0x1001)
[37306.605271] thunderbolt 0000:00:0d.3: ICM rtd3 veto=0x00000000
[37306.607378] thunderbolt 0000:00:0d.3: ICM rtd3 veto=0x00000001
[37306.907461] thunderbolt 0000:00:0d.3: ICM rtd3 veto=0x00000000
[Additional USB device discover omitted]
All of the pci output was already present by default (could maybe be made more verbose even with dynamic_debug), but note in particular the thunderbolt debug output that shows a long list of ports at the start. I believe these are all the ports that the USB router exposes internally. Interesting observations:
There are 2 DP/HDMI ports, which confirms the documentation that says the dock supports up to dual displays. Note that I expect these two ports are multiplexed (probably using a multiplexer integrated into the Goshen Ridge controller) onto the two downstream TB4 ports and the DP connector (which is probably just connected to the third downstream TB port on the Goshen Ridge controller that is not exposed). Interestingly this says “DP/HDMI” except HDMI/DP++ is not actually supported it seems.
There are 4 USB ports, which are probably endpoints of USB3 tunneling, so this is probably essentially the 4-port USB3 hub that is listed in lsusb (though interestingly the first one has a slightly different numerical type, not sure what that means).
There are 3 PCIe ports, of which the first one has a slightly different numerical type. I guess one of these is connected to the PCIe ethernet chip, but why two more? Could be downstream TB4 ports, but I thought those would typically be both connected to an external PCIe switch (so needing only one port on the USB4 switch)? Note sure how to relate these ports to the lspci output and pci kernel output, either.
The first 6 ports just have type “Port”, so no idea what those are.
Some ports are “disabled in EEPROM”, which I assume are ports that Goshen Ridge supports but are not connected to anything in this particular dock, and one port is “Inactive”, not sure what that means.
No idea what these counters and (NFC) credits mean…
Using modprobe thunderbolt dyndbg=+p you can actually get debug printing enabled at module load, so this allows capturing the info on the host-side USB4 routers (two of them, each serving two ports) when nothing is plugged in:
[63297.159042] ACPI: bus type thunderbolt registered
[63297.159624] thunderbolt 0000:00:0d.2: total paths: 12
[63297.172612] thunderbolt 0000:00:0d.2: allocating TX ring 0 of size 10
[63297.172658] thunderbolt 0000:00:0d.2: allocating RX ring 0 of size 10
[63297.172683] thunderbolt 0000:00:0d.2: control channel created
[63297.172689] thunderbolt 0000:00:0d.2: using firmware connection manager
[63297.172691] thunderbolt 0000:00:0d.2: NHI initialized, starting thunderbolt
[63297.172693] thunderbolt 0000:00:0d.2: control channel starting...
[63297.172695] thunderbolt 0000:00:0d.2: starting TX ring 0
[63297.172700] thunderbolt 0000:00:0d.2: enabling interrupt at register 0x38200 bit 0 (0x0 -> 0x1)
[63297.172705] thunderbolt 0000:00:0d.2: starting RX ring 0
[63297.172710] thunderbolt 0000:00:0d.2: enabling interrupt at register 0x38200 bit 12 (0x1 -> 0x1001)
[63297.182282] thunderbolt 0000:00:0d.2: USB4 proxy operations supported
[63297.182287] thunderbolt 0000:00:0d.2: security level set to none
[63297.187131] thunderbolt 0000:00:0d.2: current switch config:
[63297.187136] thunderbolt 0000:00:0d.2: USB4 Switch: 8087:9a1b (Revision: 1, TB Version: 32)
[63297.187142] thunderbolt 0000:00:0d.2: Max Port Number: 13
[63297.187144] thunderbolt 0000:00:0d.2: Config:
[63297.187145] thunderbolt 0000:00:0d.2: Upstream Port Number: 7 Depth: 0 Route String: 0x0 Enabled: 1, PlugEventsDelay: 10ms
[63297.187150] thunderbolt 0000:00:0d.2: unknown1: 0x0 unknown4: 0x0
[63297.238443] thunderbolt 0000:00:0d.2: 0: uid: 0xb90a0b708087e118
[63297.277519] thunderbolt 0000:00:0d.2: Port 1: 8086:9a1b (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.277531] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[63297.277535] thunderbolt 0000:00:0d.2: Max counters: 16
[63297.277537] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[63297.277540] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[63297.317662] thunderbolt 0000:00:0d.2: Port 2: 8086:9a1b (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.317673] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[63297.317676] thunderbolt 0000:00:0d.2: Max counters: 16
[63297.317677] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[63297.317680] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[63297.358043] thunderbolt 0000:00:0d.2: Port 3: 8086:9a1b (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.358054] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[63297.358058] thunderbolt 0000:00:0d.2: Max counters: 16
[63297.358060] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[63297.358062] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[63297.398397] thunderbolt 0000:00:0d.2: Port 4: 8086:9a1b (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.398408] thunderbolt 0000:00:0d.2: Max hop id (in/out): 19/19
[63297.398412] thunderbolt 0000:00:0d.2: Max counters: 16
[63297.398414] thunderbolt 0000:00:0d.2: NFC Credits: 0x83c00000
[63297.398417] thunderbolt 0000:00:0d.2: Credits (total/control): 60/2
[63297.403356] thunderbolt 0000:00:0d.2: Port 5: 8086:9a1b (Revision: 1, TB Version: 1, Type: DP/HDMI (0xe0101))
[63297.403368] thunderbolt 0000:00:0d.2: Max hop id (in/out): 9/9
[63297.403371] thunderbolt 0000:00:0d.2: Max counters: 2
[63297.403373] thunderbolt 0000:00:0d.2: NFC Credits: 0x100000d
[63297.403375] thunderbolt 0000:00:0d.2: Credits (total/control): 16/0
[63297.408373] thunderbolt 0000:00:0d.2: Port 6: 8086:9a1b (Revision: 1, TB Version: 1, Type: DP/HDMI (0xe0101))
[63297.408385] thunderbolt 0000:00:0d.2: Max hop id (in/out): 9/9
[63297.408388] thunderbolt 0000:00:0d.2: Max counters: 2
[63297.408390] thunderbolt 0000:00:0d.2: NFC Credits: 0x100000d
[63297.408392] thunderbolt 0000:00:0d.2: Credits (total/control): 16/0
[63297.423603] thunderbolt 0000:00:0d.2: Port 7: 8086:9a1b (Revision: 1, TB Version: 1, Type: NHI (0x2))
[63297.423614] thunderbolt 0000:00:0d.2: Max hop id (in/out): 11/11
[63297.423618] thunderbolt 0000:00:0d.2: Max counters: 16
[63297.423620] thunderbolt 0000:00:0d.2: NFC Credits: 0x41800000
[63297.423622] thunderbolt 0000:00:0d.2: Credits (total/control): 24/0
[63297.428530] thunderbolt 0000:00:0d.2: Port 8: 8086:9a1b (Revision: 1, TB Version: 1, Type: PCIe (0x100101))
[63297.428542] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[63297.428545] thunderbolt 0000:00:0d.2: Max counters: 2
[63297.428547] thunderbolt 0000:00:0d.2: NFC Credits: 0x40800000
[63297.428549] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[63297.433542] thunderbolt 0000:00:0d.2: Port 9: 8086:9a1b (Revision: 1, TB Version: 1, Type: PCIe (0x100101))
[63297.433554] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[63297.433557] thunderbolt 0000:00:0d.2: Max counters: 2
[63297.433559] thunderbolt 0000:00:0d.2: NFC Credits: 0x40800000
[63297.433561] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[63297.436176] thunderbolt 0000:00:0d.2: Port 10: not implemented
[63297.438872] thunderbolt 0000:00:0d.2: Port 11: not implemented
[63297.444070] thunderbolt 0000:00:0d.2: Port 12: 8086:9a1b (Revision: 1, TB Version: 1, Type: USB (0x200101))
[63297.444081] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[63297.444085] thunderbolt 0000:00:0d.2: Max counters: 2
[63297.444086] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[63297.444089] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[63297.448918] thunderbolt 0000:00:0d.2: Port 13: 8086:9a1b (Revision: 1, TB Version: 1, Type: USB (0x200101))
[63297.448928] thunderbolt 0000:00:0d.2: Max hop id (in/out): 8/8
[63297.448931] thunderbolt 0000:00:0d.2: Max counters: 2
[63297.448933] thunderbolt 0000:00:0d.2: NFC Credits: 0x800000
[63297.448935] thunderbolt 0000:00:0d.2: Credits (total/control): 8/0
[63297.448938] thunderbolt 0000:00:0d.2: 0: linked ports 1 <-> 2
[63297.448941] thunderbolt 0000:00:0d.2: 0: linked ports 3 <-> 4
[63297.457392] thunderbolt 0000:00:0d.2: ICM rtd3 veto=0x00000000
[63297.457416] thunderbolt 0000:00:0d.2: ICM rtd3 veto=0x00000001
[63297.458028] thunderbolt 0000:00:0d.3: total paths: 12
[63297.471015] thunderbolt 0000:00:0d.3: allocating TX ring 0 of size 10
[63297.471064] thunderbolt 0000:00:0d.3: allocating RX ring 0 of size 10
[63297.471088] thunderbolt 0000:00:0d.3: control channel created
[63297.471095] thunderbolt 0000:00:0d.3: using firmware connection manager
[63297.471097] thunderbolt 0000:00:0d.3: NHI initialized, starting thunderbolt
[63297.471099] thunderbolt 0000:00:0d.3: control channel starting...
[63297.471101] thunderbolt 0000:00:0d.3: starting TX ring 0
[63297.471106] thunderbolt 0000:00:0d.3: enabling interrupt at register 0x38200 bit 0 (0x0 -> 0x1)
[63297.471110] thunderbolt 0000:00:0d.3: starting RX ring 0
[63297.471115] thunderbolt 0000:00:0d.3: enabling interrupt at register 0x38200 bit 12 (0x1 -> 0x1001)
[63297.480278] thunderbolt 0000:00:0d.3: USB4 proxy operations supported
[63297.480285] thunderbolt 0000:00:0d.3: security level set to none
[63297.483413] thunderbolt 0000:00:0d.2: ICM rtd3 veto=0x00000000
[63297.485196] thunderbolt 0000:00:0d.3: current switch config:
[63297.485200] thunderbolt 0000:00:0d.3: USB4 Switch: 8087:9a1d (Revision: 1, TB Version: 32)
[63297.485205] thunderbolt 0000:00:0d.3: Max Port Number: 13
[63297.485207] thunderbolt 0000:00:0d.3: Config:
[63297.485208] thunderbolt 0000:00:0d.3: Upstream Port Number: 7 Depth: 0 Route String: 0x0 Enabled: 1, PlugEventsDelay: 10ms
[63297.485212] thunderbolt 0000:00:0d.3: unknown1: 0x0 unknown4: 0x0
[63297.536875] thunderbolt 0000:00:0d.3: 0: uid: 0x10d7eb2180874d14
[63297.576464] thunderbolt 0000:00:0d.3: Port 1: 8086:9a1d (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.576476] thunderbolt 0000:00:0d.3: Max hop id (in/out): 19/19
[63297.576480] thunderbolt 0000:00:0d.3: Max counters: 16
[63297.576482] thunderbolt 0000:00:0d.3: NFC Credits: 0x83c00000
[63297.576484] thunderbolt 0000:00:0d.3: Credits (total/control): 60/2
[63297.616748] thunderbolt 0000:00:0d.3: Port 2: 8086:9a1d (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.616760] thunderbolt 0000:00:0d.3: Max hop id (in/out): 19/19
[63297.616763] thunderbolt 0000:00:0d.3: Max counters: 16
[63297.616765] thunderbolt 0000:00:0d.3: NFC Credits: 0x83c00000
[63297.616767] thunderbolt 0000:00:0d.3: Credits (total/control): 60/2
[63297.657036] thunderbolt 0000:00:0d.3: Port 3: 8086:9a1d (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.657045] thunderbolt 0000:00:0d.3: Max hop id (in/out): 19/19
[63297.657048] thunderbolt 0000:00:0d.3: Max counters: 16
[63297.657050] thunderbolt 0000:00:0d.3: NFC Credits: 0x83c00000
[63297.657053] thunderbolt 0000:00:0d.3: Credits (total/control): 60/2
[63297.696912] thunderbolt 0000:00:0d.3: Port 4: 8086:9a1d (Revision: 1, TB Version: 1, Type: Port (0x1))
[63297.696923] thunderbolt 0000:00:0d.3: Max hop id (in/out): 19/19
[63297.696926] thunderbolt 0000:00:0d.3: Max counters: 16
[63297.696928] thunderbolt 0000:00:0d.3: NFC Credits: 0x83c00000
[63297.696930] thunderbolt 0000:00:0d.3: Credits (total/control): 60/2
[63297.701928] thunderbolt 0000:00:0d.3: Port 5: 8086:9a1d (Revision: 1, TB Version: 1, Type: DP/HDMI (0xe0101))
[63297.701939] thunderbolt 0000:00:0d.3: Max hop id (in/out): 9/9
[63297.701942] thunderbolt 0000:00:0d.3: Max counters: 2
[63297.701944] thunderbolt 0000:00:0d.3: NFC Credits: 0x100000d
[63297.701946] thunderbolt 0000:00:0d.3: Credits (total/control): 16/0
[63297.706899] thunderbolt 0000:00:0d.3: Port 6: 8086:9a1d (Revision: 1, TB Version: 1, Type: DP/HDMI (0xe0101))
[63297.706909] thunderbolt 0000:00:0d.3: Max hop id (in/out): 9/9
[63297.706911] thunderbolt 0000:00:0d.3: Max counters: 2
[63297.706913] thunderbolt 0000:00:0d.3: NFC Credits: 0x100000d
[63297.706915] thunderbolt 0000:00:0d.3: Credits (total/control): 16/0
[63297.721996] thunderbolt 0000:00:0d.3: Port 7: 8086:9a1d (Revision: 1, TB Version: 1, Type: NHI (0x2))
[63297.722005] thunderbolt 0000:00:0d.3: Max hop id (in/out): 11/11
[63297.722008] thunderbolt 0000:00:0d.3: Max counters: 16
[63297.722010] thunderbolt 0000:00:0d.3: NFC Credits: 0x41800000
[63297.722012] thunderbolt 0000:00:0d.3: Credits (total/control): 24/0
[63297.727054] thunderbolt 0000:00:0d.3: Port 8: 8086:9a1d (Revision: 1, TB Version: 1, Type: PCIe (0x100101))
[63297.727065] thunderbolt 0000:00:0d.3: Max hop id (in/out): 8/8
[63297.727067] thunderbolt 0000:00:0d.3: Max counters: 2
[63297.727069] thunderbolt 0000:00:0d.3: NFC Credits: 0x40800000
[63297.727071] thunderbolt 0000:00:0d.3: Credits (total/control): 8/0
[63297.732210] thunderbolt 0000:00:0d.3: Port 9: 8086:9a1d (Revision: 1, TB Version: 1, Type: PCIe (0x100101))
[63297.732221] thunderbolt 0000:00:0d.3: Max hop id (in/out): 8/8
[63297.732224] thunderbolt 0000:00:0d.3: Max counters: 2
[63297.732226] thunderbolt 0000:00:0d.3: NFC Credits: 0x40800000
[63297.732228] thunderbolt 0000:00:0d.3: Credits (total/control): 8/0
[63297.734706] thunderbolt 0000:00:0d.3: Port 10: not implemented
[63297.737229] thunderbolt 0000:00:0d.3: Port 11: not implemented
[63297.742554] thunderbolt 0000:00:0d.3: Port 12: 8086:9a1d (Revision: 1, TB Version: 1, Type: USB (0x200101))
[63297.742564] thunderbolt 0000:00:0d.3: Max hop id (in/out): 8/8
[63297.742567] thunderbolt 0000:00:0d.3: Max counters: 2
[63297.742569] thunderbolt 0000:00:0d.3: NFC Credits: 0x800000
[63297.742571] thunderbolt 0000:00:0d.3: Credits (total/control): 8/0
[63297.747562] thunderbolt 0000:00:0d.3: Port 13: 8086:9a1d (Revision: 1, TB Version: 1, Type: USB (0x200101))
[63297.747573] thunderbolt 0000:00:0d.3: Max hop id (in/out): 8/8
[63297.747576] thunderbolt 0000:00:0d.3: Max counters: 2
[63297.747578] thunderbolt 0000:00:0d.3: NFC Credits: 0x800000
[63297.747580] thunderbolt 0000:00:0d.3: Credits (total/control): 8/0
[63297.747583] thunderbolt 0000:00:0d.3: 0: linked ports 1 <-> 2
[63297.747586] thunderbolt 0000:00:0d.3: 0: linked ports 3 <-> 4
[63297.753615] thunderbolt 0000:00:0d.3: ICM rtd3 veto=0x00000000
[63297.753628] thunderbolt 0000:00:0d.3: ICM rtd3 veto=0x00000001
[63297.782254] thunderbolt 0000:00:0d.3: ICM rtd3 veto=0x00000000
This does not seem to show whether these ports are in or out adapters, but maybe that’s encoded in the numeric port types or so (or maybe some are bidirectional even)?
My curiosity is what would happen if you use the M.2 slot in a dock with a PCIE to M.2 adapter to connect a GPU (of course with external power form another source)? In the ideal situation would the GPU be able to utilize the Bandwidth to give favorable results, or would it even be recognized as a GPU by the Laptop? Basically, using a $45 adapter and external power supply that is extra anyways instead of buying an eGPU housing.
Would depend on the bandwidth of the dock. With a TB4 dock, it would probably just saturate the link and compete with anything else plugged in for bandwidth. Anything else might flat out refuse to work depending on implementation.
M.2 to PCIe adapters are really designed for an M.2 connected directly to a cpu pcie lane, anything more and you risk a chain of x16 to x4 to x2/Thunderbolt to x4 or similar and it’s just a mess.
From my experience, best practice is to keep your eGPU on a separate Thunderbolt controller from everything else for best performance. Framework’s dual-controller setup is awesome for that because I can have a fully saturated eGPU controller on one side, and all my peripherals which don’t even scratch the surface of the max of the link on the other.
So from what I understood, even with Thunderbolt 4 you can not reach full PCIe 3.0 x16 speed for a GPU using a simple eGPU dock?
According to Kingston, PCIe 3.0 x16 uses 32 GB/s of bandwidth and Thunderbolt 4 according to Intel has a maximum 40 Gbps which roughly translates to 5 GB/s which is obviously not enough.
Or is that the speed per lane (and we have 4 lanes) therefore we actually have 20 GB/s bandwidth which would almost be enough to saturate an AMD RX 580 GPU?
