How do I set a specific VRAM amount on 13" AMD Laptop

Community Support
,
1

I am wanting to know if it is possible to set a specific VRAM amount for the AMD 13" laptop.

I know you can go to the BIOS and change the iGPU config option from UMA_automatic to UMA_game_optimized but that only gives me 2GB of VRAM. I’d like 4GB at a minimum. On other AMD laptops there is a third option under this iGPU config that isn’t listed here called UMA_specified which lets you choose how much exactly.

Maybe this just isn’t in the BIOS yet (as of 3.03).
I have a 7640U and 16GB of RAM. Maybe the CPU type or RAM amount effects this?

3 Likes
2

I believe the amount of RAM reserved is based on how much RAM you have installed as I have 4 GB reserved with 32 GB of RAM.

1 Like
3

I have set mine to UMA_game_optimized as well and got 4GB VRAM out of 64GB RAM. Default was merely 512MB.
I’d also like more control and especially more transparency what each option really means.

3 Likes
4

win11, uma_auto, 2x16BG ram,

Screenshot 2023-12-06 204435
Screenshot 2023-12-06 204435586×593 37.2 KB

I’ll restart and edit with game_optimized results.

uma_game_optimized
4GB with 32BG of ram.

Screenshot 2023-12-06 205136
Screenshot 2023-12-06 205136591×591 37.6 KB

1 Like
5

I guess it just sets is based on the RAM amount if you used UMA_game_optimized. Hopefully in a new BIOS update they will make it to where you can set it manually.

1 Like
6

The system uses unified memory, which means that the ram is dynamically allocated between the CPU and iGPU depending on where it’s needed.

Some programs will see very little VRAM and throw an error about not having enough VRAM (because the program doesn’t understand that more VRAM will be dynamically allocated when it’s needed). The BIOS setting UMA_GAME_OPTIMIZED (which is poorly named BTW) is to dedicate some VRAM so that those programs see a couple GB of VRAM and don’t throw an error.

3 Likes
7

Maybe up to 4GB? Considering a few people have 4GB@32GB, and one has 4GB@64GB.

8

The static allocation is fixed, what is based on the available memory is how much it can dynamically allocate. It defaults to half the ram on windows and linux.

2 Likes
9

I have the FW 13 7840u with FW supplied nvme 1TB SN850x and 64GB DDR5.

I am using the Framework drivers suite located here: https://knowledgebase.frame.work/framework-laptop-bios-and-driver-releases-amd-ryzen-7040-series-r1rXGVL16

Bios is 3.03 and recently upgraded to 3.03b as recommended by support to fix stability issues.

Using AMD Vendor supplied drivers is a no-no for this laptop.

My issue is even with Game Mode activated in the BIOS I can’t get this thing to show more than 512mb vRAM in the AMD software.

I’ve uninstalled /reinstalled the Drivers
Used a utility from ChrisTitusTech Windows script to download and install DDU, booted into safe mode, nuked the AMD Graphics drivers and reinstalled.
Changed the Game Mode in BIOS to Auto and rebooted into Windows
Changed back to Game Mode in BIOS and rebooted into Windows
Reset to BIOS Defaults and booted back into Windows
And repeated the steps chaning the PCIE fallback to Gen3 when on Battery.

When reinstalling FW AMD Graphics drivers the last time I also selected the Factory Reset Option, opting to NOT save user data.

What is going wrong here? It was shoing 4GB of VRAM at one point, now it doesn’t and I can’t find how to toggle it back

image2253×1388 211 KB

10

Anyone from the forum moderators around that can help me post this in the right spot if this isn’t an ideal place to ask this particular question?

11

If you haven’t resolved the problem I’d suggest to contact Framework Support directly.

12

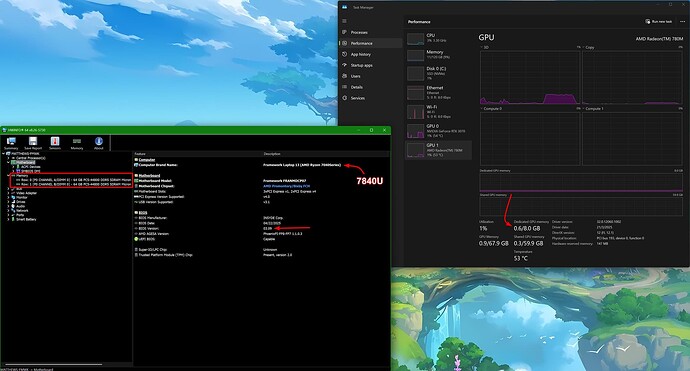

HWiNFO64_BODuskZrCL
HWiNFO64_BODuskZrCL1920×1035 126 KB

BIOS version 3.09 here on the 7840U. I have 8GB of VRAM reserved out of the 128GB for the 780M integrated graphics. I have the setting for the iGPU VRAM allocation set to the one that says gaming or something.

Can’t tell if this was a recent change in the latest BIOS because I just got this AMD 13 7840U Framework a few weeks ago, but maybe someone else with 32 or 64GB can fill in the gap on what it takes to get 8GB of VRAM. Because in the BIOS setting, I see no mention of more than 4GB of VRAM possibly being given.

13

Hey @Matthew78917 I just ordered the 16" AMD laptop, with the 7940U.

I was wondering if you could run the following to check a few parameters:

  1. Check if the UMA Frame Buffer Size has Auto/Max options
    A. Reboot your system and Enter BIOS/UEFI setup (usually F2, DEL, or ESC during boot).
    B. Check what values are available (Auto/1GB, 2GB, 4GB, 8GB, 16GB/Max or similar)
    If you see only 512MB to 2GB, most likely we have a capped BIOS)

  2. Check if BIOS/driver caps VRAM
    A. Use dmesg to view GPU memory mapping: dmesg | grep -i vram
    B. Or if you have Vulkan installed: vulkaninfo | grep -i “Heap size” ( Vulkan will show
    dedicated and shared memory pools.)

  3. Check if Above 4G Decoding and Resizable BAR are enabled in BIOS
    A. Boot into BIOS.
    B. Look under:
    Advanced > PCIe Settings
    Look for:
    Above 4G Decoding (should be Enabled)
    Resizable BAR / Re-Size BAR Support (should be Enabled)

Or run this: sudo lspci -vvv | grep -A 20 -i vga (for resizable BAR)
Look for:
Capabilities: [100 v1] Resizable BAR
BAR 0: current size: 256MB, supported: 256MB, 512MB, 1GB, 2GB, 4GB

I know it’s a lot, but these may help understand what you’re dealing with.

14

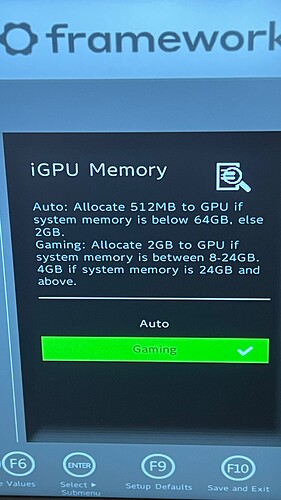

IMG_3959_Original
IMG_3959_Original1920×3413 314 KB

image1920×1440 159 KB

  1. Can’t find what you’re looking for, but you can check anyways. Also, in my BIOS, I couldn’t find anything called PCIe Settings under the advanced menu. And since you’re on the 7940HS 16 inch framework, you’re likely going to have some different bios options than mine.

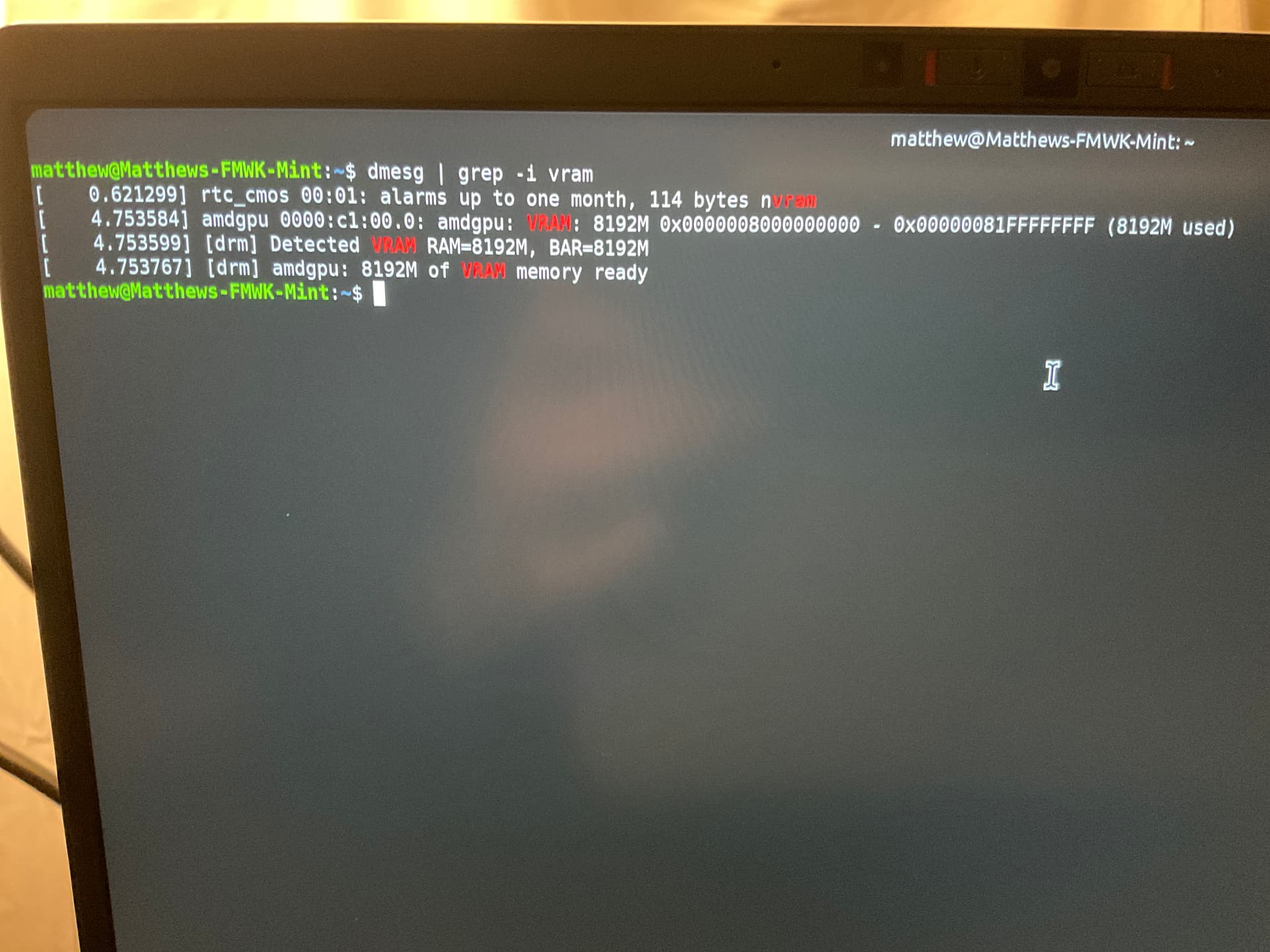

matthew@Matthews-FMWK-Mint:~$ sudo lspci -vvv | grep -A 20 -i vga
[sudo] password for matthew:
	Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
	Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
