Mainboard real size?

[rromm]

Specs says 295*229 but

1. the height is 2 times less than length (at least)
2. you can’t hold 229mm like that



Maybe somebody can show mainboard drawing image with sizes?

[rromm]

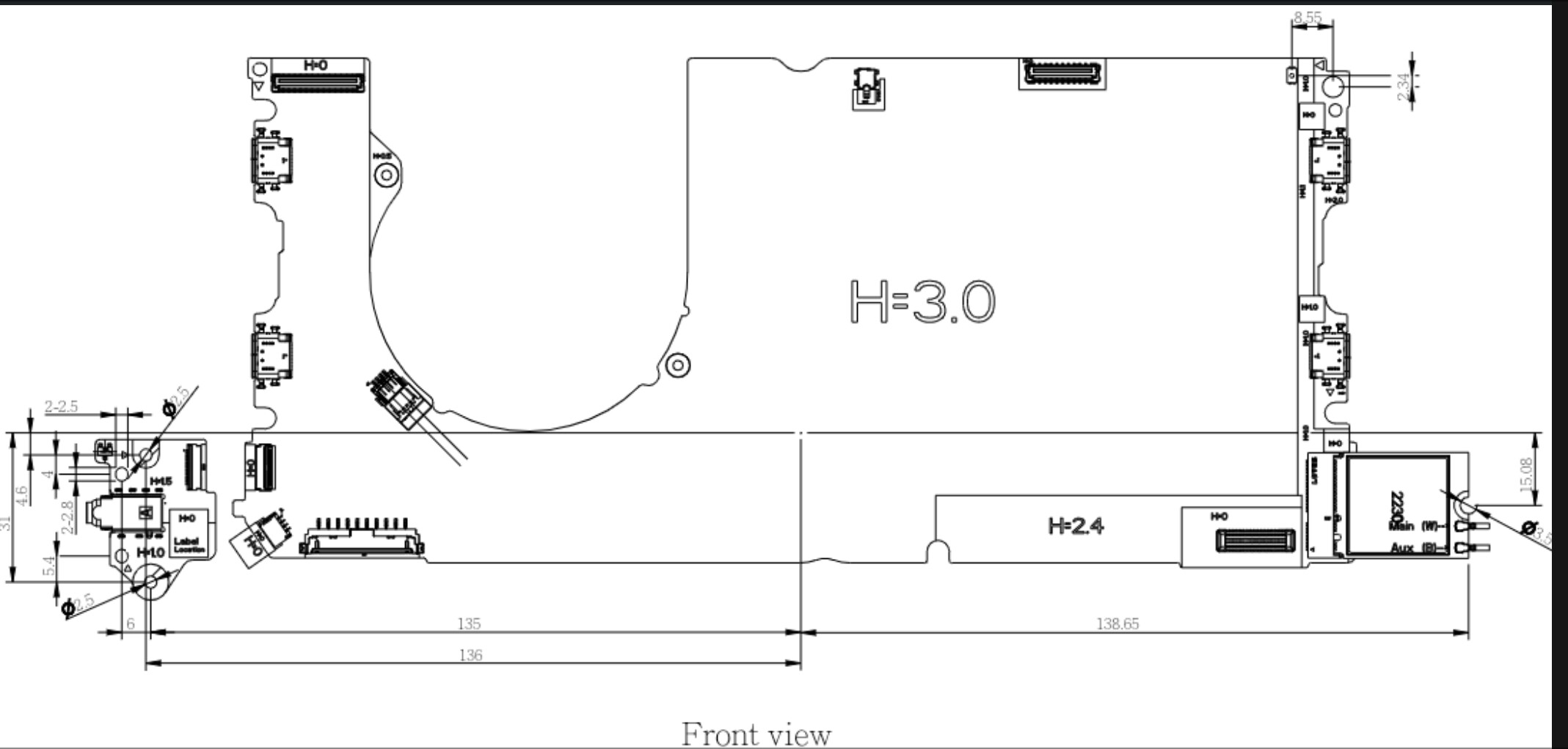

I found this pdf on github.
but wanted to know the height.
plus heatsink top looks higher than board’s top (1st post photo) which is also matters.

[rromm]

I took a ruler and measured board’s pdf pic height
It’s about 10.6 cm. Wonder why specified 2 times more.

[Josh_Cook]

Probably box/shipping size

[Nich_Trimble]

I’m surprised the exact dimensions aren’t in the Github. I can take my callipers to mine if you need exact measurements.

[rromm]

yes pls and don’t forget heatsink thx

[Karl_Buchka]

The PDF you posted a screenshot from has most of the relevant footprint dimensions on page 2.

There is also this reference CAD that someone made: Motherboard Reference CAD

[rromm]

So what’s the real height with heatsink

[Nich_Trimble]

Looks like the depth at the fins is a hair over 7mm, and the height of the mainboard from fins to edge of PCB below the SSD is 112mm.

[nrp]

We’ve updated the drawings to include the Heatsink and Fan on the last page: Mainboard/fw_main_pcb_generic_2_w_fan.pdf at main · FrameworkComputer/Mainboard · GitHub

[rromm]

Still there’s no size of protrusive part of heatsink

[Nich_Trimble]

The 6.8mm height in the posted schematics tracks with what I measured, have to account for some tolerances

[nrp]

We’ve updated the drawing again to include the heatsink fin dimensions.

[rromm]

looks like mainboard height is
77.83 + more than 27 (see lower line)
