Hello, I installed an oculink nvme adapter to the dual m.2 expansion bay module and I thought I could share the results.

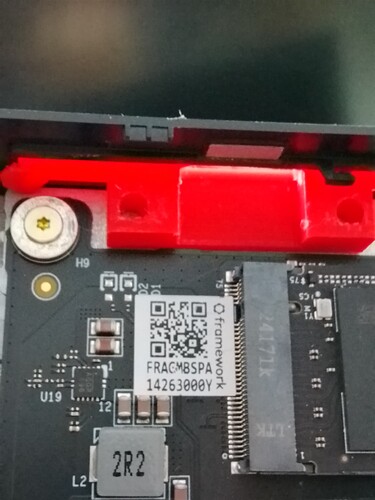

I made another Version of the io panel for the oculink connector that has prongs
It snaps on and holds onto the IO shield very tightly.
they both slide into the FW16 nicely.
The design is for following oculink adapter.
Amazon.com: NFHK 2280 NGFF PCI-E4.0 M.2 M-Key to Oculink SFF-8612 SFF-8611 Host Cable 15cm for NVME U.2 SSD Egpu : Electronics
Here are the stl files.
ioshield for oculink with prongs.stl (620.1 KB)
ioshield for oculink.stl (565.9 KB)
plugs_final.stl (204.6 KB)
