OcuLink Expansion Bay Module

There’s a lot of ambiguity across a few of these threads about this. So I did some real-world benchmarking for everyone using Horizon Zero Dawn Remastered.

Some testing notes:

  • I have the 7940HS CPU model for the FW16, with the original liquid metal cooling (no mods) and 1st-gen display
  • I’m running everything in powersave mode because I haaaaate the sound of the fans
  • My USB4 dock is an ADT-Link UT3G
  • My OcuLink dock is an ADT-LINK F9G (4i) and I’m using * Kyle’s adapter inside the M.2 expansion
  • My GPU is an RX 7900XTX
  • The game graphics are cranked to as high as they can go, with all AI crap turned off

And the results:

Benchmark Oculink USB4
4K direct to GPU 57 24
1600P direct to GPU 64 26
1600P using eGPU on internal display 58 23

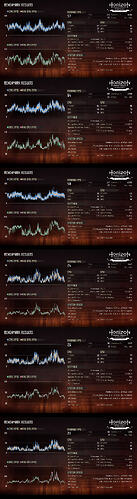

Here’s the snippets of the game CSV files:
