Thanks both, suspend issue seems fixed, i’ll update the others if it has solved those too. Very pleased to get this suspend working again.
I have the same problem with freezes/crashes as described by @Ablomme, @Matias and @J3d, so I downgraded to 3.03 and the crashes were gone.
I am on Fedora 40 but experienced the crashes with Fedora 39 as well. Does this bug only affect Linux users? Are there any solutions for it yet?
Cheers
1 Like
I stopped having problems even with 3.05 after updating my SSD’s firmware (following this comment.)
2 Likes
This thread is making me not want to upgrade from 3.03B
Btw if anyone from Framework is following this thread, please release the driver updates separately as well as in a bundle. If one driver has an issue and needs reinstalling, it seems daft to have to reinstall them all
2 Likes

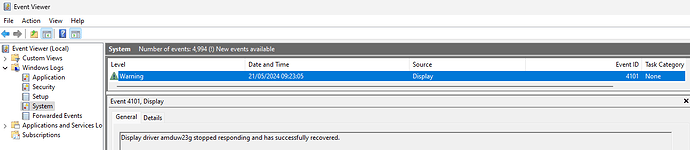

Is anyone else seeing
Display driver amduw23g stopped responding and has successfully recovered.
in their System logs in Event Viewer on Windows 11 right after booting the computer? I was wondering why my screen was black for a long time (about 30-60 seconds) after booting Windows, so I checked Event Viewer, and apparently it’s the AMD drivers.
I have the official Framework driver bundle installed, driver version 23.40.18.02 (also shown as 31.0.24018.2001 in the Device Manager, but the AMD software shows driver version 23.40.18.02).
Alternatively, the driver bundle could prompt you for Yes/No before installing each driver.
Or perhaps they should make it so you can add /ASK to the command line and only then will it ask Yes/No before each driver.
1 Like
Thanks for your reply! I updated my firmware yesterday and have not yet experienced any more crashes (I use a WD Black sn850). I will update you in a week or so if this solved my problem as well.
Yes, I’ve been getting this when resuming from sleep.
Running the latest version of the AMD graphics drivers on Windows 11.
@Matias Thank you so much, there were no more crashes after the firmware update. It’s a shame that WD makes them so bothersome for linux users…
Hello,
Here are the issues, I have seen which are remaining :
[ 0.003534] ACPI BIOS Warning (bug): Optional FADT field Pm2ControlBlock has valid Length but zero Address: 0x0000000000000000/0x1 (20220331/tbfadt-615)
[ 0.227541] #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15
[ 0.334466] Expanded resource Reserved due to conflict with PCI Bus 0000:00
[ 0.334468] Expanded resource Reserved due to conflict with PCI Bus 0000:00
[ 0.526100] i8042: PNP: PS/2 appears to have AUX port disabled, if this is incorrect please boot with i8042.nopnp
[ 0.528045] i8042: Warning: Keylock active
[ 0.905220] booting system configuration /nix/store/00x9ljzjwnjhghl4bs1frlh1jf8clpyk-nixos-system-Sakabato-23.11.7237.46397778ef1f
[ 2.236655] cros_ec_lpcs cros_ec_lpcs.0: EC ID not detected
[ 2.919272] amdgpu 0000:c1:00.0: amdgpu: PSP runtime database doesn't exist
[ 2.919275] amdgpu 0000:c1:00.0: amdgpu: PSP runtime database doesn't exist
[ 3.626407] amdgpu: SRAT table not found
[ 4.585652] Bluetooth: hci0: HCI Enhanced Setup Synchronous Connection command is advertised, but not supported.
[ 4.833072] Bluetooth: hci0: Bad flag given (0x1) vs supported (0x0)
[ 3855.435327] queueing ieee80211 work while going to suspend
[ 4208.161529] [drm] Watermarks table not configured properly by SMU
[ 4240.876665] queueing ieee80211 work while going to suspend
[ 7738.872604] [drm] Watermarks table not configured properly by SMU
[ 7738.952065] typec port3-partner: PM: parent port3 should not be sleeping
[ 7744.459623] usbhid 7-1.3.3.1:1.1: can't add hid device: -32
[ 7744.459632] usbhid: probe of 7-1.3.3.1:1.1 failed with error -32
[ 7744.922942] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110)
...
[14525.043132] [drm:dc_dmub_srv_cmd_queue [amdgpu]] *ERROR* Error waiting for DMUB idle: status=3
ACPI errror has more details here : ACPI BIOS Warning (bug)
I’m running kernel 6.1.91 LTS.
The Embedded Controller should be fixed on Linux 6.10+, I believe.
I suggest you test a more current kernel. A bunch of those warnings are cleared up in later kernels. Here’s a subset of the ones I know of offhand.
[ 3.626407] amdgpu: SRAT table not found
SRAT table check is no longer there in 6.5 or later.
[ 7738.872604] [drm] Watermarks table not configured properly by SMU
This is to be “expected” by Phoenix, it’s been downgraded to debug in 6.5 or later.
[ 2.919272] amdgpu 0000:c1:00.0: amdgpu: PSP runtime database doesn’t exist
[ 2.919275] amdgpu 0000:c1:00.0: amdgpu: PSP runtime database doesn’t exist
This has been downgraded to debug in 6.3 or later.
3 Likes
I just ran the BIOS update (through Windows) on my AMD FW 13 and it seems to have killed the computer in a strange way. The update never finished. It instead turned the screen into a mess. (It’s hard to explain: things mostly looked fine, but a parallelogram worth of space on the screen became glitchy.) Furthermore, I could not force shutdown the computer with the power key, no mater how long I pressed it. I unplugged it and left it for 6 hours and returned to a totally white screen. Again, I am unable to force it to shutdown, no matter how long I hold the button. I have plugged it back in, in case having it completely run down will kill it even more. What am I supposed to do now?! Open it up and disconnect the battery?
If you haven’t already, also file a support ticket with Framework support.
2 Likes
Running 6.6.32 LTS Linux Kernel, I ran into the dreaded issue :
[120473.683673] [drm] VCN decode and encode initialized successfully(under DPG Mode).
[120473.683876] amdgpu 0000:c1:00.0: [drm:jpeg_v4_0_hw_init [amdgpu]] JPEG decode initialized successfully.
[120473.684216] amdgpu 0000:c1:00.0: amdgpu: ring gfx_0.0.0 uses VM inv eng 0 on hub 0
[120473.684219] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.0.0 uses VM inv eng 1 on hub 0
[120473.684222] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.1.0 uses VM inv eng 4 on hub 0
[120473.684224] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.2.0 uses VM inv eng 6 on hub 0
[120473.684225] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.3.0 uses VM inv eng 7 on hub 0
[120473.684227] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.0.1 uses VM inv eng 8 on hub 0
[120473.684229] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.1.1 uses VM inv eng 9 on hub 0
[120473.684230] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.2.1 uses VM inv eng 10 on hub 0
[120473.684232] amdgpu 0000:c1:00.0: amdgpu: ring comp_1.3.1 uses VM inv eng 11 on hub 0
[120473.684234] amdgpu 0000:c1:00.0: amdgpu: ring sdma0 uses VM inv eng 12 on hub 0
[120473.684236] amdgpu 0000:c1:00.0: amdgpu: ring vcn_unified_0 uses VM inv eng 0 on hub 8
[120473.684238] amdgpu 0000:c1:00.0: amdgpu: ring jpeg_dec uses VM inv eng 1 on hub 8
[120473.684240] amdgpu 0000:c1:00.0: amdgpu: ring mes_kiq_3.1.0 uses VM inv eng 13 on hub 0
[120473.689819] [drm] ring gfx_32788.1.1 was added
[120473.690382] [drm] ring compute_32788.2.2 was added
[120473.690941] [drm] ring sdma_32788.3.3 was added
[120473.690991] [drm] ring gfx_32788.1.1 ib test pass
[120473.691026] [drm] ring compute_32788.2.2 ib test pass
[120473.691101] [drm] ring sdma_32788.3.3 ib test pass
[120473.799257] OOM killer enabled.
[120473.799263] Restarting tasks ... done.
[120473.814604] random: crng reseeded on system resumption
[120473.832632] PM: suspend exit
[120478.949926] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110)
[121066.226897] amdgpu 0000:c1:00.0: amdgpu: [gfxhub] page fault (src_id:0 ring:24 vmid:2 pasid:32786, for process .kitty-wrapped pid 345369 thread kitty:cs0 pid 345370)
[121066.226909] amdgpu 0000:c1:00.0: amdgpu: in page starting at address 0x0000826b3da44000 from client 10
[121066.226912] amdgpu 0000:c1:00.0: amdgpu: GCVM_L2_PROTECTION_FAULT_STATUS:0x00201430
[121066.226914] amdgpu 0000:c1:00.0: amdgpu: Faulty UTCL2 client ID: SQC (data) (0xa)
[121066.226917] amdgpu 0000:c1:00.0: amdgpu: MORE_FAULTS: 0x0
[121066.226918] amdgpu 0000:c1:00.0: amdgpu: WALKER_ERROR: 0x0
[121066.226920] amdgpu 0000:c1:00.0: amdgpu: PERMISSION_FAULTS: 0x3
[121066.226921] amdgpu 0000:c1:00.0: amdgpu: MAPPING_ERROR: 0x0
[121066.226923] amdgpu 0000:c1:00.0: amdgpu: RW: 0x0
[121066.932269] usb 1-1: USB disconnect, device number 2
[121069.464656] usb 1-1: new full-speed USB device number 16 using xhci_hcd
[121069.627792] usb 1-1: New USB device found, idVendor=32ac, idProduct=0002, bcdDevice= 0.00
[121069.627801] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[121069.627805] usb 1-1: Product: HDMI Expansion Card
[121069.627808] usb 1-1: Manufacturer: Framework
[121069.627810] usb 1-1: SerialNumber: 11AD1D002C9740110A270B00
[121069.686465] hid-generic 0003:32AC:0002.0038: hiddev96,hidraw0: USB HID v1.11 Device [Framework HDMI Expansion Card] on usb-0000:c1:00.3-1/input1
[121076.663192] [drm:amdgpu_job_timedout [amdgpu]] *ERROR* ring gfx_0.0.0 timeout, but soft recovered
Full logs
❯ sudo dmesg --level=warn,err [ 1448.956431] usbhid 5-1.3.3.1:1.1: can't add hid device: -32 [ 1448.984583] usbhid: probe of 5-1.3.3.1:1.1 failed with error -32 [ 1513.689444] logitech-hidpp-device 0003:046D:0A87.0020: io already started [ 9535.659155] usb 5-1.3.2: Unable to submit urb #1: -19 at snd_usb_queue_pending_output_urbs [ 9535.664668] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9535.675286] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9535.685978] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9535.696679] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9535.707371] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9535.718407] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9535.729041] usb 5-1.3.2: cannot submit urb 0, error -19: no device [ 9770.187264] logitech-hidpp-device 0003:046D:0A87.0029: io already started [14237.198076] queueing ieee80211 work while going to suspend [31902.167998] logitech-hidpp-device 0003:046D:0A87.002A: io already started [33791.702381] queueing ieee80211 work while going to suspend [57379.380688] logitech-hidpp-device 0003:046D:0A87.002B: io already started [57703.457345] ucsi_acpi USBC000:00: unknown error 0 [57703.457363] ucsi_acpi USBC000:00: UCSI_GET_PDOS failed (-5) [57704.466887] ucsi_acpi USBC000:00: unknown error 0 [57704.466892] ucsi_acpi USBC000:00: UCSI_GET_PDOS failed (-5) [57708.420726] usbhid 7-1.3.3.1:1.1: can't add hid device: -32 [57708.446118] usbhid: probe of 7-1.3.3.1:1.1 failed with error -32 [65869.193146] queueing ieee80211 work while going to suspend [71098.433369] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110) [71103.760324] [drm] enabling link 2 failed: 15 [71106.255112] done. [71106.579938] ------------[ cut here ]------------ [71106.579944] WARNING: CPU: 14 PID: 26623 at drivers/gpu/drm/amd/amdgpu/../display/amdgpu_dm/amdgpu_dm_helpers.c:244 dm_helpers_construct_old_payload+0xc6/0xe0 [amdgpu] [71106.580567] Modules linked in: uvcvideo videobuf2_vmalloc uvc videobuf2_memops videobuf2_v4l2 videodev videobuf2_common hid_logitech_hidpp ccm qrtr rfcomm snd_seq_dummy snd_hrtimer snd_seq af_packet nft_chain_nat xt_MASQUERADE nf_conntrack_netlink xfrm_user xfrm_algo xt_addrtype uhid overlay cmac algif_hash algif_skcipher af_alg snd_usb_audio snd_usbmidi_lib snd_ump snd_rawmidi snd_seq_device mc bnep amdgpu cdc_ether usbnet mt7921e mt7921_common mt792x_lib mt76_connac_lib mt76 snd_sof_amd_vangogh snd_sof_amd_rembrandt snd_sof_amd_renoir snd_sof_amd_acp snd_sof_pci snd_sof_xtensa_dsp snd_sof snd_hda_codec_realtek snd_sof_utils mac80211 snd_hda_codec_generic snd_soc_core ledtrig_audio snd_hda_codec_hdmi snd_compress ac97_bus snd_pcm_dmaengine btusb snd_hda_intel hid_sensor_als snd_pci_ps btrtl hid_sensor_trigger snd_intel_dspcfg drm_exec snd_rpl_pci_acp6x industrialio_triggered_buffer btintel amdxcp snd_intel_sdw_acpi kfifo_buf snd_acp_pci drm_buddy gpu_sched snd_acp_legacy_common hid_sensor_iio_common btbcm [71106.580717] snd_hda_codec mousedev drm_suballoc_helper edac_mce_amd btmtk industrialio snd_pci_acp6x drm_ttm_helper intel_rapl_msr cfg80211 edac_core snd_hda_core snd_pci_acp5x joydev ttm bluetooth intel_rapl_common snd_hwdep snd_rn_pci_acp3x drm_display_helper crc32_pclmul nls_iso8859_1 snd_acp_config snd_pcm nls_cp437 polyval_clmulni r8152 sp5100_tco ucsi_acpi cec polyval_generic snd_soc_acpi gf128mul watchdog typec_ucsi snd_timer vfat hid_multitouch i2c_algo_bit cros_ec_lpcs ghash_clmulni_intel hid_sensor_hub hid_generic fat sha512_ssse3 sha256_ssse3 sha1_ssse3 ecdh_generic wmi_bmof mii cros_ec aesni_intel snd rfkill crypto_simd cryptd ecc usbhid rapl typec tiny_power_button k10temp snd_pci_acp3x i2c_piix4 libarc4 soundcore video battery wmi ac i2c_hid_acpi thermal roles i2c_hid button backlight hid amd_pmf tpm_crb evdev amd_pmc platform_profile input_leds led_class mac_hid serio_raw xt_conntrack ip6t_rpfilter ipt_rpfilter xt_pkttype xt_LOG nf_log_syslog xt_tcpudp nft_compat nf_tables sch_fq_codel uinput wireguard [71106.580960] curve25519_x86_64 libchacha20poly1305 chacha_x86_64 poly1305_x86_64 libcurve25519_generic libchacha ip6_udp_tunnel udp_tunnel loop xt_nat nf_nat nf_conntrack nf_defrag_ipv6 nf_defrag_ipv4 libcrc32c br_netfilter veth tun tap macvlan bridge stp llc kvm_amd ccp kvm irqbypass fuse efi_pstore configfs nfnetlink efivarfs dmi_sysfs ip_tables x_tables autofs4 ext4 crc32c_generic crc16 mbcache jbd2 atkbd xhci_pci xhci_pci_renesas libps2 nvme vivaldi_fmap firmware_class thunderbolt nvme_core xhci_hcd nvme_common tpm_tis t10_pi tpm_tis_core crc64_rocksoft crc32c_intel crc64 i8042 crc_t10dif tpm crct10dif_generic crct10dif_pclmul crct10dif_common rtc_cmos serio rng_core dm_mod dax [71106.581094] CPU: 14 PID: 26623 Comm: .kwin_wayland-w Not tainted 6.6.32 #1-NixOS [71106.581101] Hardware name: Framework Laptop 13 (AMD Ryzen 7040Series)/FRANMDCP07, BIOS 03.05 03/29/2024 [71106.581104] RIP: 0010:dm_helpers_construct_old_payload+0xc6/0xe0 [amdgpu] [71106.581615] Code: 0f af d2 41 89 50 10 39 c8 74 1f 48 8b 84 24 98 00 00 00 65 48 2b 04 25 28 00 00 00 75 14 48 81 c4 a0 00 00 00 e9 f5 41 28 c8 <0f> 0b eb dd 31 c0 eb d5 e8 9d ed 15 c8 66 66 2e 0f 1f 84 00 00 00 [71106.581620] RSP: 0018:ffffc900043e34e0 EFLAGS: 00010246 [71106.581627] RAX: 0000000000000000 RBX: 0000000000000000 RCX: 0000000000000000 [71106.581630] RDX: ffff888109bd3b18 RSI: ffff8881164043e0 RDI: ffffc900043e3578 [71106.581633] RBP: ffff888181a00000 R08: ffffc900043e3588 R09: ffff888116404000 [71106.581636] R10: 000000000000001e R11: 0000000000000110 R12: ffffc900043e364c [71106.581639] R13: ffff88811143c280 R14: ffff88810fe76578 R15: ffff888109bd3ae0 [71106.581642] FS: 00007fb421062000(0000) GS:ffff888f62100000(0000) knlGS:0000000000000000 [71106.581646] CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 [71106.581650] CR2: 000055f072455e08 CR3: 0000000104568000 CR4: 0000000000f50ee0 [71106.581654] PKRU: 55555554 [71106.581656] Call Trace: [71106.581662] [71106.581666] ? dm_helpers_construct_old_payload+0xc6/0xe0 [amdgpu] [71106.582163] ? __warn+0x81/0x130 [71106.582179] ? dm_helpers_construct_old_payload+0xc6/0xe0 [amdgpu] [71106.582760] ? report_bug+0x171/0x1a0 [71106.582773] ? handle_bug+0x3c/0x80 [71106.582782] ? exc_invalid_op+0x17/0x70 [71106.582787] ? asm_exc_invalid_op+0x1a/0x20 [71106.582800] ? dm_helpers_construct_old_payload+0xc6/0xe0 [amdgpu] [71106.583271] dm_helpers_dp_mst_write_payload_allocation_table+0xb0/0x120 [amdgpu] [71106.583728] link_set_dpms_off+0x68e/0x8a0 [amdgpu] [71106.584333] dcn31_reset_hw_ctx_wrap+0x1fb/0x370 [amdgpu] [71106.584858] dce110_apply_ctx_to_hw+0x6b/0x710 [amdgpu] [71106.585345] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.585353] ? dm_read_reg_func+0x38/0xb0 [amdgpu] [71106.585888] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.585896] ? hubbub31_verify_allow_pstate_change_high+0x78/0x150 [amdgpu] [71106.586403] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.586409] ? dcn10_verify_allow_pstate_change_high+0x36/0x3b0 [amdgpu] [71106.586985] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.586992] ? dcn10_wait_for_mpcc_disconnect+0x3a/0x160 [amdgpu] [71106.587469] dc_commit_state_no_check+0x3cb/0xe30 [amdgpu] [71106.588001] dc_commit_streams+0x29b/0x400 [amdgpu] [71106.588461] amdgpu_dm_atomic_commit_tail+0x344/0x39c0 [amdgpu] [71106.589007] ? dm_read_reg_func+0x38/0xb0 [amdgpu] [71106.589468] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.589474] ? dm_read_reg_func+0x38/0xb0 [amdgpu] [71106.589924] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.589930] ? generic_reg_get+0x21/0x40 [amdgpu] [71106.590423] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.590429] ? optc1_get_crtc_scanoutpos+0x7b/0xb0 [amdgpu] [71106.590936] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.590941] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.590946] ? __entry_text_end+0x101e36/0x101e39 [71106.590953] ? amdgpu_display_get_crtc_scanoutpos+0xaa/0x190 [amdgpu] [71106.591407] ? __pfx_amdgpu_crtc_get_scanout_position+0x10/0x10 [amdgpu] [71106.591860] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.591866] ? amdgpu_crtc_get_scanout_position+0x28/0x40 [amdgpu] [71106.592289] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.592294] ? drm_crtc_vblank_helper_get_vblank_timestamp_internal+0xf3/0x3a0 [71106.592306] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.592311] ? wait_for_completion_timeout+0x13e/0x170 [71106.592319] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.592324] ? drm_crtc_get_last_vbltimestamp+0x55/0x90 [71106.592337] commit_tail+0x91/0x130 [71106.592347] drm_atomic_helper_commit+0x11a/0x140 [71106.592356] drm_atomic_commit+0x97/0xd0 [71106.592362] ? __pfx___drm_printfn_info+0x10/0x10 [71106.592369] drm_mode_atomic_ioctl+0xa8f/0xca0 [71106.592383] ? __pfx_drm_mode_atomic_ioctl+0x10/0x10 [71106.592388] drm_ioctl_kernel+0xd3/0x180 [71106.592398] drm_ioctl+0x26d/0x4b0 [71106.592405] ? __pfx_drm_mode_atomic_ioctl+0x10/0x10 [71106.592419] amdgpu_drm_ioctl+0x4e/0x90 [amdgpu] [71106.592847] __x64_sys_ioctl+0x94/0xd0 [71106.592858] do_syscall_64+0x39/0x90 [71106.592870] entry_SYSCALL_64_after_hwframe+0x78/0xe2 [71106.592880] RIP: 0033:0x7fb4259189cf [71106.592940] Code: 00 48 89 44 24 18 31 c0 48 8d 44 24 60 c7 04 24 10 00 00 00 48 89 44 24 08 48 8d 44 24 20 48 89 44 24 10 b8 10 00 00 00 0f 05 <89> c2 3d 00 f0 ff ff 77 18 48 8b 44 24 18 64 48 2b 04 25 28 00 00 [71106.592944] RSP: 002b:00007ffd4aeaef80 EFLAGS: 00000246 ORIG_RAX: 0000000000000010 [71106.592951] RAX: ffffffffffffffda RBX: 0000000004452b94 RCX: 00007fb4259189cf [71106.592954] RDX: 00007ffd4aeaf070 RSI: 00000000c03864bc RDI: 0000000000000013 [71106.592957] RBP: 00007ffd4aeaf070 R08: 00000000043a59c0 R09: 0000000002e9e900 [71106.592960] R10: 00000000036186f4 R11: 0000000000000246 R12: 00000000c03864bc [71106.592963] R13: 0000000000000013 R14: 000000000341e6c8 R15: 0000000000000019 [71106.592974] [71106.592977] ---[ end trace 0000000000000000 ]--- [71106.593001] ------------[ cut here ]------------ [71106.593004] WARNING: CPU: 14 PID: 26623 at drivers/gpu/drm/amd/amdgpu/../display/amdgpu_dm/amdgpu_dm_helpers.c:190 fill_dc_mst_payload_table_from_drm+0x94/0x140 [amdgpu] [71106.593564] Modules linked in: uvcvideo videobuf2_vmalloc uvc videobuf2_memops videobuf2_v4l2 videodev videobuf2_common hid_logitech_hidpp ccm qrtr rfcomm snd_seq_dummy snd_hrtimer snd_seq af_packet nft_chain_nat xt_MASQUERADE nf_conntrack_netlink xfrm_user xfrm_algo xt_addrtype uhid overlay cmac algif_hash algif_skcipher af_alg snd_usb_audio snd_usbmidi_lib snd_ump snd_rawmidi snd_seq_device mc bnep amdgpu cdc_ether usbnet mt7921e mt7921_common mt792x_lib mt76_connac_lib mt76 snd_sof_amd_vangogh snd_sof_amd_rembrandt snd_sof_amd_renoir snd_sof_amd_acp snd_sof_pci snd_sof_xtensa_dsp snd_sof snd_hda_codec_realtek snd_sof_utils mac80211 snd_hda_codec_generic snd_soc_core ledtrig_audio snd_hda_codec_hdmi snd_compress ac97_bus snd_pcm_dmaengine btusb snd_hda_intel hid_sensor_als snd_pci_ps btrtl hid_sensor_trigger snd_intel_dspcfg drm_exec snd_rpl_pci_acp6x industrialio_triggered_buffer btintel amdxcp snd_intel_sdw_acpi kfifo_buf snd_acp_pci drm_buddy gpu_sched snd_acp_legacy_common hid_sensor_iio_common btbcm [71106.593705] snd_hda_codec mousedev drm_suballoc_helper edac_mce_amd btmtk industrialio snd_pci_acp6x drm_ttm_helper intel_rapl_msr cfg80211 edac_core snd_hda_core snd_pci_acp5x joydev ttm bluetooth intel_rapl_common snd_hwdep snd_rn_pci_acp3x drm_display_helper crc32_pclmul nls_iso8859_1 snd_acp_config snd_pcm nls_cp437 polyval_clmulni r8152 sp5100_tco ucsi_acpi cec polyval_generic snd_soc_acpi gf128mul watchdog typec_ucsi snd_timer vfat hid_multitouch i2c_algo_bit cros_ec_lpcs ghash_clmulni_intel hid_sensor_hub hid_generic fat sha512_ssse3 sha256_ssse3 sha1_ssse3 ecdh_generic wmi_bmof mii cros_ec aesni_intel snd rfkill crypto_simd cryptd ecc usbhid rapl typec tiny_power_button k10temp snd_pci_acp3x i2c_piix4 libarc4 soundcore video battery wmi ac i2c_hid_acpi thermal roles i2c_hid button backlight hid amd_pmf tpm_crb evdev amd_pmc platform_profile input_leds led_class mac_hid serio_raw xt_conntrack ip6t_rpfilter ipt_rpfilter xt_pkttype xt_LOG nf_log_syslog xt_tcpudp nft_compat nf_tables sch_fq_codel uinput wireguard [71106.593884] curve25519_x86_64 libchacha20poly1305 chacha_x86_64 poly1305_x86_64 libcurve25519_generic libchacha ip6_udp_tunnel udp_tunnel loop xt_nat nf_nat nf_conntrack nf_defrag_ipv6 nf_defrag_ipv4 libcrc32c br_netfilter veth tun tap macvlan bridge stp llc kvm_amd ccp kvm irqbypass fuse efi_pstore configfs nfnetlink efivarfs dmi_sysfs ip_tables x_tables autofs4 ext4 crc32c_generic crc16 mbcache jbd2 atkbd xhci_pci xhci_pci_renesas libps2 nvme vivaldi_fmap firmware_class thunderbolt nvme_core xhci_hcd nvme_common tpm_tis t10_pi tpm_tis_core crc64_rocksoft crc32c_intel crc64 i8042 crc_t10dif tpm crct10dif_generic crct10dif_pclmul crct10dif_common rtc_cmos serio rng_core dm_mod dax [71106.594006] CPU: 14 PID: 26623 Comm: .kwin_wayland-w Tainted: G W 6.6.32 #1-NixOS [71106.594013] Hardware name: Framework Laptop 13 (AMD Ryzen 7040Series)/FRANMDCP07, BIOS 03.05 03/29/2024 [71106.594015] RIP: 0010:fill_dc_mst_payload_table_from_drm+0x94/0x140 [amdgpu] [71106.594492] Code: 09 31 d2 48 89 c1 eb 0b 83 c2 01 48 83 c1 18 39 d6 74 17 40 38 39 75 f0 48 63 ca 31 ff 48 8d 0c 49 66 89 7c cc 28 39 d6 75 22 <0f> 0b eb 1e 0f b7 5a 0c 0f b7 05 cf 36 75 00 48 8d 0c 76 8a 42 09 [71106.594497] RSP: 0018:ffffc900043e34c8 EFLAGS: 00010246 [71106.594502] RAX: ffffc900043e34f0 RBX: 0000000000000000 RCX: 0000000000000000 [71106.594506] RDX: 0000000000000000 RSI: 0000000000000000 RDI: ffffc900043e3570 [71106.594508] RBP: ffff888181a00000 R08: ffffc900043e364c R09: 0000000000000000 [71106.594511] R10: 000000000000001e R11: 0000000000000110 R12: ffffc900043e364c [71106.594514] R13: ffffc900043e3588 R14: ffff88810fe76578 R15: ffff888109bd3ae0 [71106.594518] FS: 00007fb421062000(0000) GS:ffff888f62100000(0000) knlGS:0000000000000000 [71106.594522] CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 [71106.594525] CR2: 000055f072455e08 CR3: 0000000104568000 CR4: 0000000000f50ee0 [71106.594529] PKRU: 55555554 [71106.594531] Call Trace: [71106.594535] [71106.594537] ? fill_dc_mst_payload_table_from_drm+0x94/0x140 [amdgpu] [71106.595002] ? __warn+0x81/0x130 [71106.595013] ? fill_dc_mst_payload_table_from_drm+0x94/0x140 [amdgpu] [71106.595466] ? report_bug+0x171/0x1a0 [71106.595476] ? handle_bug+0x3c/0x80 [71106.595484] ? exc_invalid_op+0x17/0x70 [71106.595488] ? asm_exc_invalid_op+0x1a/0x20 [71106.595499] ? fill_dc_mst_payload_table_from_drm+0x94/0x140 [amdgpu] [71106.595987] dm_helpers_dp_mst_write_payload_allocation_table+0xd6/0x120 [amdgpu] [71106.596447] link_set_dpms_off+0x68e/0x8a0 [amdgpu] [71106.597027] dcn31_reset_hw_ctx_wrap+0x1fb/0x370 [amdgpu] [71106.597533] dce110_apply_ctx_to_hw+0x6b/0x710 [amdgpu] [71106.598030] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.598037] ? dm_read_reg_func+0x38/0xb0 [amdgpu] [71106.598588] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.598593] ? hubbub31_verify_allow_pstate_change_high+0x78/0x150 [amdgpu] [71106.599133] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.599139] ? dcn10_verify_allow_pstate_change_high+0x36/0x3b0 [amdgpu] [71106.599661] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.599667] ? dcn10_wait_for_mpcc_disconnect+0x3a/0x160 [amdgpu] [71106.600141] dc_commit_state_no_check+0x3cb/0xe30 [amdgpu] [71106.600659] dc_commit_streams+0x29b/0x400 [amdgpu] [71106.601203] amdgpu_dm_atomic_commit_tail+0x344/0x39c0 [amdgpu] [71106.601740] ? dm_read_reg_func+0x38/0xb0 [amdgpu] [71106.602227] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.602233] ? dm_read_reg_func+0x38/0xb0 [amdgpu] [71106.602666] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.602672] ? generic_reg_get+0x21/0x40 [amdgpu] [71106.603150] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.603156] ? optc1_get_crtc_scanoutpos+0x7b/0xb0 [amdgpu] [71106.603655] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.603661] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.603666] ? __entry_text_end+0x101e36/0x101e39 [71106.603672] ? amdgpu_display_get_crtc_scanoutpos+0xaa/0x190 [amdgpu] [71106.604134] ? __pfx_amdgpu_crtc_get_scanout_position+0x10/0x10 [amdgpu] [71106.604572] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.604578] ? amdgpu_crtc_get_scanout_position+0x28/0x40 [amdgpu] [71106.605021] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.605027] ? drm_crtc_vblank_helper_get_vblank_timestamp_internal+0xf3/0x3a0 [71106.605038] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.605043] ? wait_for_completion_timeout+0x13e/0x170 [71106.605050] ? srso_alias_return_thunk+0x5/0xfbef5 [71106.605055] ? drm_crtc_get_last_vbltimestamp+0x55/0x90 [71106.605068] commit_tail+0x91/0x130 [71106.605078] drm_atomic_helper_commit+0x11a/0x140 [71106.605086] drm_atomic_commit+0x97/0xd0 [71106.605092] ? __pfx___drm_printfn_info+0x10/0x10 [71106.605099] drm_mode_atomic_ioctl+0xa8f/0xca0 [71106.605113] ? __pfx_drm_mode_atomic_ioctl+0x10/0x10 [71106.605118] drm_ioctl_kernel+0xd3/0x180 [71106.605129] drm_ioctl+0x26d/0x4b0 [71106.605136] ? __pfx_drm_mode_atomic_ioctl+0x10/0x10 [71106.605149] amdgpu_drm_ioctl+0x4e/0x90 [amdgpu] [71106.605548] __x64_sys_ioctl+0x94/0xd0 [71106.605557] do_syscall_64+0x39/0x90 [71106.605565] entry_SYSCALL_64_after_hwframe+0x78/0xe2 [71106.605578] RIP: 0033:0x7fb4259189cf [71106.605635] Code: 00 48 89 44 24 18 31 c0 48 8d 44 24 60 c7 04 24 10 00 00 00 48 89 44 24 08 48 8d 44 24 20 48 89 44 24 10 b8 10 00 00 00 0f 05 <89> c2 3d 00 f0 ff ff 77 18 48 8b 44 24 18 64 48 2b 04 25 28 00 00 [71106.605639] RSP: 002b:00007ffd4aeaef80 EFLAGS: 00000246 ORIG_RAX: 0000000000000010 [71106.605645] RAX: ffffffffffffffda RBX: 0000000004452b94 RCX: 00007fb4259189cf [71106.605648] RDX: 00007ffd4aeaf070 RSI: 00000000c03864bc RDI: 0000000000000013 [71106.605651] RBP: 00007ffd4aeaf070 R08: 00000000043a59c0 R09: 0000000002e9e900 [71106.605653] R10: 00000000036186f4 R11: 0000000000000246 R12: 00000000c03864bc [71106.605656] R13: 0000000000000013 R14: 000000000341e6c8 R15: 0000000000000019 [71106.605667] [71106.605669] ---[ end trace 0000000000000000 ]--- [71595.009109] ------------[ cut here ]------------ [71595.009126] NETDEV WATCHDOG: enp193s0f3u5 (): transmit queue 0 timed out 2894 ms [71595.009148] WARNING: CPU: 4 PID: 0 at net/sched/sch_generic.c:525 dev_watchdog+0x232/0x240 [71595.009163] Modules linked in: uvcvideo videobuf2_vmalloc uvc videobuf2_memops videobuf2_v4l2 videodev videobuf2_common hid_logitech_hidpp ccm qrtr rfcomm snd_seq_dummy snd_hrtimer snd_seq af_packet nft_chain_nat xt_MASQUERADE nf_conntrack_netlink xfrm_user xfrm_algo xt_addrtype uhid overlay cmac algif_hash algif_skcipher af_alg snd_usb_audio snd_usbmidi_lib snd_ump snd_rawmidi snd_seq_device mc bnep amdgpu cdc_ether usbnet mt7921e mt7921_common mt792x_lib mt76_connac_lib mt76 snd_sof_amd_vangogh snd_sof_amd_rembrandt snd_sof_amd_renoir snd_sof_amd_acp snd_sof_pci snd_sof_xtensa_dsp snd_sof snd_hda_codec_realtek snd_sof_utils mac80211 snd_hda_codec_generic snd_soc_core ledtrig_audio snd_hda_codec_hdmi snd_compress ac97_bus snd_pcm_dmaengine btusb snd_hda_intel hid_sensor_als snd_pci_ps btrtl hid_sensor_trigger snd_intel_dspcfg drm_exec snd_rpl_pci_acp6x industrialio_triggered_buffer btintel amdxcp snd_intel_sdw_acpi kfifo_buf snd_acp_pci drm_buddy gpu_sched snd_acp_legacy_common hid_sensor_iio_common btbcm [71595.009502] snd_hda_codec mousedev drm_suballoc_helper edac_mce_amd btmtk industrialio snd_pci_acp6x drm_ttm_helper intel_rapl_msr cfg80211 edac_core snd_hda_core snd_pci_acp5x joydev ttm bluetooth intel_rapl_common snd_hwdep snd_rn_pci_acp3x drm_display_helper crc32_pclmul nls_iso8859_1 snd_acp_config snd_pcm nls_cp437 polyval_clmulni r8152 sp5100_tco ucsi_acpi cec polyval_generic snd_soc_acpi gf128mul watchdog typec_ucsi snd_timer vfat hid_multitouch i2c_algo_bit cros_ec_lpcs ghash_clmulni_intel hid_sensor_hub hid_generic fat sha512_ssse3 sha256_ssse3 sha1_ssse3 ecdh_generic wmi_bmof mii cros_ec aesni_intel snd rfkill crypto_simd cryptd ecc usbhid rapl typec tiny_power_button k10temp snd_pci_acp3x i2c_piix4 libarc4 soundcore video battery wmi ac i2c_hid_acpi thermal roles i2c_hid button backlight hid amd_pmf tpm_crb evdev amd_pmc platform_profile input_leds led_class mac_hid serio_raw xt_conntrack ip6t_rpfilter ipt_rpfilter xt_pkttype xt_LOG nf_log_syslog xt_tcpudp nft_compat nf_tables sch_fq_codel uinput wireguard [71595.009828] curve25519_x86_64 libchacha20poly1305 chacha_x86_64 poly1305_x86_64 libcurve25519_generic libchacha ip6_udp_tunnel udp_tunnel loop xt_nat nf_nat nf_conntrack nf_defrag_ipv6 nf_defrag_ipv4 libcrc32c br_netfilter veth tun tap macvlan bridge stp llc kvm_amd ccp kvm irqbypass fuse efi_pstore configfs nfnetlink efivarfs dmi_sysfs ip_tables x_tables autofs4 ext4 crc32c_generic crc16 mbcache jbd2 atkbd xhci_pci xhci_pci_renesas libps2 nvme vivaldi_fmap firmware_class thunderbolt nvme_core xhci_hcd nvme_common tpm_tis t10_pi tpm_tis_core crc64_rocksoft crc32c_intel crc64 i8042 crc_t10dif tpm crct10dif_generic crct10dif_pclmul crct10dif_common rtc_cmos serio rng_core dm_mod dax [71595.010052] CPU: 4 PID: 0 Comm: swapper/4 Tainted: G W 6.6.32 #1-NixOS [71595.010060] Hardware name: Framework Laptop 13 (AMD Ryzen 7040Series)/FRANMDCP07, BIOS 03.05 03/29/2024 [71595.010065] RIP: 0010:dev_watchdog+0x232/0x240 [71595.010073] Code: ff ff ff 48 89 df c6 05 76 d2 20 01 01 e8 46 0b fa ff 45 89 f8 44 89 f1 48 89 de 48 89 c2 48 c7 c7 08 ed 37 8a e8 fe 02 6b ff <0f> 0b e9 2d ff ff ff 0f 1f 80 00 00 00 00 90 90 90 90 90 90 90 90 [71595.010080] RSP: 0018:ffffc900002b4e78 EFLAGS: 00010286 [71595.010088] RAX: 0000000000000000 RBX: ffff8889fe917000 RCX: 0000000000000000 [71595.010094] RDX: ffff888f61c2d980 RSI: ffff888f61c21500 RDI: 00000000000400f6 [71595.010098] RBP: ffff8889fe9174c8 R08: 0000000000000000 R09: ffffc900002b4d18 [71595.010103] R10: 0000000000000003 R11: ffffffff8ab3a4c8 R12: ffff8887251f2e00 [71595.010107] R13: ffff8889fe91741c R14: 0000000000000000 R15: 0000000000000b4e [71595.010112] FS: 0000000000000000(0000) GS:ffff888f61c00000(0000) knlGS:0000000000000000 [71595.010118] CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 [71595.010123] CR2: 00007f6dc0024dc0 CR3: 0000000615c20000 CR4: 0000000000f50ee0 [71595.010128] PKRU: 55555554 [71595.010132] Call Trace: [71595.010137] [71595.010141] ? dev_watchdog+0x232/0x240 [71595.010148] ? __warn+0x81/0x130 [71595.010159] ? dev_watchdog+0x232/0x240 [71595.010166] ? report_bug+0x171/0x1a0 [71595.010178] ? handle_bug+0x3c/0x80 [71595.010187] ? exc_invalid_op+0x17/0x70 [71595.010194] ? asm_exc_invalid_op+0x1a/0x20 [71595.010209] ? dev_watchdog+0x232/0x240 [71595.010216] ? dev_watchdog+0x232/0x240 [71595.010222] ? __pfx_dev_watchdog+0x10/0x10 [71595.010229] call_timer_fn+0x24/0x130 [71595.010239] ? __pfx_dev_watchdog+0x10/0x10 [71595.010245] __run_timers+0x222/0x2c0 [71595.010259] run_timer_softirq+0x1d/0x40 [71595.010267] __do_softirq+0xd1/0x2c8 [71595.010279] __irq_exit_rcu+0xa3/0xc0 [71595.010286] sysvec_apic_timer_interrupt+0x72/0x90 [71595.010295] [71595.010299] [71595.010303] asm_sysvec_apic_timer_interrupt+0x1a/0x20 [71595.010310] RIP: 0010:cpuidle_enter_state+0xcc/0x440 [71595.010320] Code: 9a fe 54 ff e8 25 f2 ff ff 8b 53 04 49 89 c5 0f 1f 44 00 00 31 ff e8 83 ff 53 ff 45 84 ff 0f 85 56 02 00 00 fb 0f 1f 44 00 00 <45> 85 f6 0f 88 85 01 00 00 49 63 d6 48 8d 04 52 48 8d 04 82 49 8d [71595.010325] RSP: 0018:ffffc900001efe90 EFLAGS: 00000246 [71595.010333] RAX: ffff888f61c33000 RBX: ffff888102209c00 RCX: 000000000000001f [71595.010338] RDX: 0000000000000004 RSI: 0000000026dc71fd RDI: 0000000000000000 [71595.010342] RBP: 0000000000000003 R08: 0000000000000002 R09: 000000000000000f [71595.010347] R10: 0000000000000018 R11: 0000000000000000 R12: ffffffff8abb6f20 [71595.010351] R13: 0000411d83159872 R14: 0000000000000003 R15: 0000000000000000 [71595.010366] cpuidle_enter+0x2d/0x40 [71595.010375] do_idle+0x1d8/0x230 [71595.010384] cpu_startup_entry+0x2a/0x30 [71595.010390] start_secondary+0x11e/0x140 [71595.010399] secondary_startup_64_no_verify+0x18f/0x19b [71595.010415] [71595.010418] ---[ end trace 0000000000000000 ]--- [72454.234723] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [72514.245376] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [72578.060601] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [72638.067378] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [72698.070127] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [73063.408210] queueing ieee80211 work while going to suspend [87297.241757] queueing ieee80211 work while going to suspend [87302.287082] mt7921e 0000:01:00.0: Message 00020007 (seq 5) timeout [87302.287106] mt7921e 0000:01:00.0: PM: dpm_run_callback(): pci_pm_restore+0x0/0xe0 returns -110 [87302.287125] mt7921e 0000:01:00.0: PM: failed to restore async: error -110 [87304.437168] done. [87306.665032] Bluetooth: hci0: HCI Enhanced Setup Synchronous Connection command is advertised, but not supported. [87311.482088] queueing ieee80211 work while going to suspend [88712.446681] queueing ieee80211 work while going to suspend [89326.926594] queueing ieee80211 work while going to suspend [90735.865524] queueing ieee80211 work while going to suspend [96506.248364] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110) [96580.019767] queueing ieee80211 work while going to suspend [97270.718604] queueing ieee80211 work while going to suspend [103545.067972] typec port3-partner: PM: parent port3 should not be sleeping [103551.260040] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110) [109371.399545] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [109393.943775] Bluetooth: hci0: ACL packet for unknown connection handle 3837 [110947.134406] Bluetooth: hci0: Opcode 0x0408 failed: -107 [110948.334277] amd_pmc AMDI0009:00: Last suspend didn't reach deepest state [110948.652006] bluetooth hci0:50: PM: parent hci0 should not be sleeping [120478.949926] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110) [121066.226897] amdgpu 0000:c1:00.0: amdgpu: [gfxhub] page fault (src_id:0 ring:24 vmid:2 pasid:32786, for process .kitty-wrapped pid 345369 thread kitty:cs0 pid 345370) [121066.226909] amdgpu 0000:c1:00.0: amdgpu: in page starting at address 0x0000826b3da44000 from client 10 [121066.226912] amdgpu 0000:c1:00.0: amdgpu: GCVM_L2_PROTECTION_FAULT_STATUS:0x00201430 [121066.226914] amdgpu 0000:c1:00.0: amdgpu: Faulty UTCL2 client ID: SQC (data) (0xa) [121066.226917] amdgpu 0000:c1:00.0: amdgpu: MORE_FAULTS: 0x0 [121066.226918] amdgpu 0000:c1:00.0: amdgpu: WALKER_ERROR: 0x0 [121066.226920] amdgpu 0000:c1:00.0: amdgpu: PERMISSION_FAULTS: 0x3 [121066.226921] amdgpu 0000:c1:00.0: amdgpu: MAPPING_ERROR: 0x0 [121066.226923] amdgpu 0000:c1:00.0: amdgpu: RW: 0x0 [121076.663192] [drm:amdgpu_job_timedout [amdgpu]] *ERROR* ring gfx_0.0.0 timeout, but soft recovered [124577.830365] typec port3-partner: PM: parent port3 should not be sleeping [124583.739650] ucsi_acpi USBC000:00: ucsi_handle_connector_change: ACK failed (-110)
I’ve had issues going into S2idle, the laptop seemed to heat up a lot and did not go into the full sleep state when required to. However I have not seen any graphical artifacts. There could have been a freeze or two when the error happened.
Am I the only one ?
1 Like
Doesn’t seem I’m the only one : [TRACKING] Graphical corruption in Fedora 39 (AMD 3.03 BIOS) - #283 by Alex_H
I get this frequently, if you find any solution please let me know
Not the only one.
I crossed my fingers, opened the machine, and just unplugged the battery. That seemed to get it back on track.
Hi, I just got my Framework 13 AMD 7840u. Got it up and running following the directions provided. Question… can I go directly to https://www.amd.com/en/support/download/drivers.html and download the AMD Software Installer? Or I have to stick with the software bundle I got from Framework as part of the installation instructions?
There are more than just the AMD drivers in the driver bundle so it should be installed first once you have installed Windows.
It would be a lot of work to separately find all the other drivers.
Once you have done that, if you’re feeling brave, you can try to find newer versions of any drivers that you feel you want to try the very latest version of.
1 Like
