Which fingerprint sensor should I buy?

Community Support
,
1

Framework 13 AMD Ryzen 7040 series

Hi everyone,

My framework fell from my hands and I damaged the fingerprint corner. The metal and glass is broken, the sensor in itself still works, but impossible to physically push the button.

PXL_20250428_053155712
PXL_20250428_0531557121354×1798 342 KB

I opened the cover to manually click on the button membrane under and it works, so I have my workaround for now.

image1920×2550 274 KB

I have 2 questions:

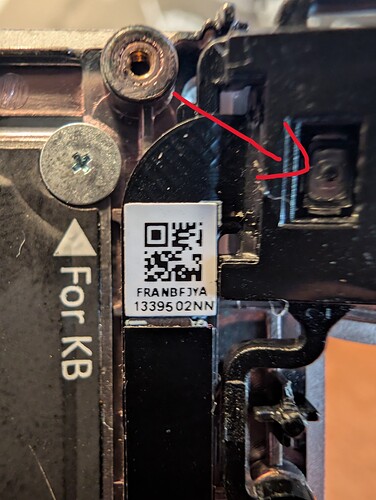

  • which part should I buy because on the shop (Framework | Fingerprint Reader Kit) I see only FRANFF0001 and FRANTD0001 but it looks like I have FRANBFJYA
  • I can’t figure out if I’m missing a small pointy part B to be put under the button here (see my reply) so that when pushing the button down the membrane will be pressed against this pointy part B, or if the button in itself should be moving and clicking on its own ? Because mine is completely stuck and not moving at all. If I’m missing this part, buying a new fingerprint part won’t fix my problem

Thanks a lot !!

PS: for now I’m missing 2 pictures because I’m a new user. I’ll put them in a reply, when staff will allow me :slight_smile:

2

image1567×2080 376 KB

PXL_20250428_053206880.MP
PXL_20250428_053206880.MP1920×2550 221 KB

3

The only difference is the uniformity of the LED Light. They should be compatible with any FW13.

But I dont think the new one fits without bending the Top Cover.
I would advise getting a whole new Top Cover that includes the Fingerprint Reader (Framework | Framework Input Cover Keyboard Kit in what Language you need) and bending the Bottom Cover in place if you want.
Better Probably to get also a new Bottom Cover (Framework | Bottom Cover Kit) because it seems quite bend as well. And bending will probably be quite ugly.

I myself have a dent in the Bootom Cover but it is not as severe as yours and also on the right front where only the speaker sits. I did not bend it back.
