Thank You Kyle… I did find the e-mail (back on November 28)… I just missed it. I had a little issues with VENMO, but all is good now.
I appreciate your work on this project.. I am looking forward to getting it and posting my results.
MD
2 Likes

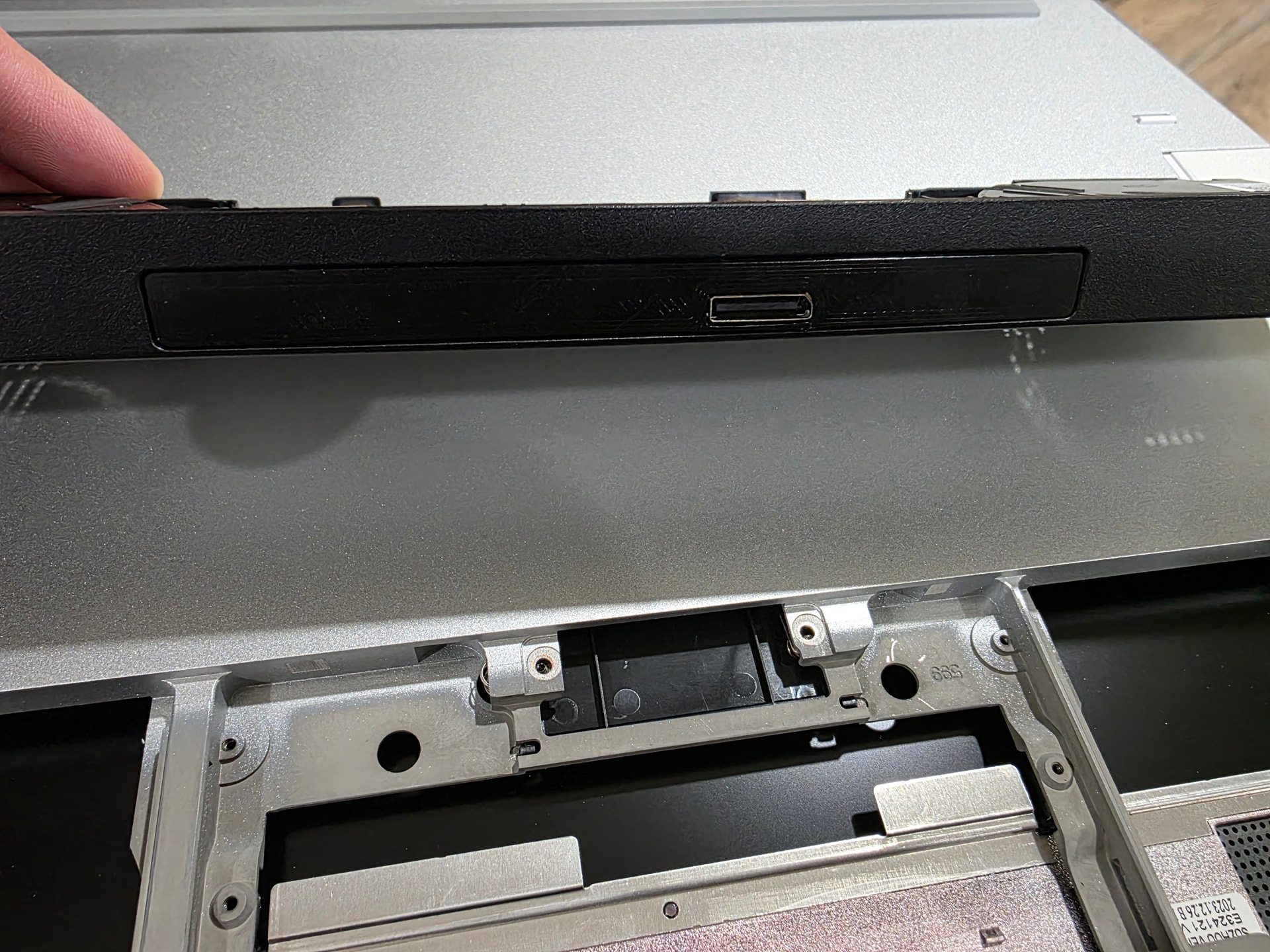

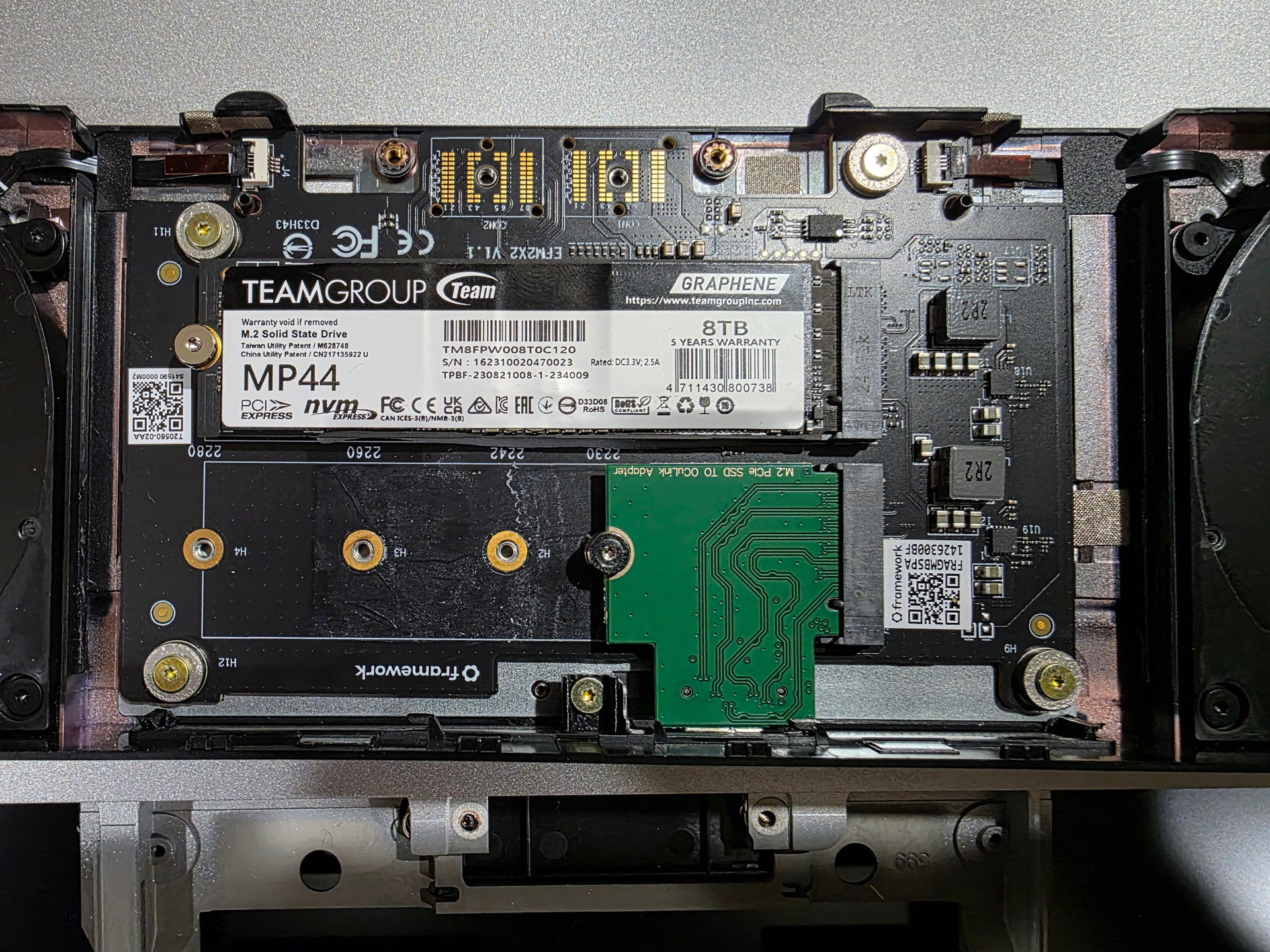

Figured I would post this here from the other thread..
2 Likes
8TB! Nice! That for the Steam library?
1 Like
I have a 2tb boot drive and 2 8tb storage ssds. I’m a datahoarder. Need it for music, music videos, anime, shows, movies. Blu-rays and 4K Blu-rays especially take up a lot of space. I keep the compressed versions on my laptop and the uncompressed ones on my NAS.
4 Likes
Added my name to the list, I won’t have a way to use it until likely after Christmas, I don’t currently have a a oculink dock, or the dual m.2/expansion bay but will likely get the framework stuff for Christmas from the wifey and waiting for the EG02 to come back in stock
1 Like
I have replied to everyone who has submitted to the list at this point, so if you didn’t see an email from me, please check your spam/trash folder.
Kyle
3 Likes
Reporting in! It works with my minisforum dock and 3060!
2 Likes
Hey folks. Please see the updates in the first post.
2 Likes
All adapters for folks in the US who have paid have now been shipped. Check your email for tracking details. If you don’t see it in your inbox, check your spam/trash.
For those of you in Europe who have filled out the list but have not paid, you still have a little time before I ship those out to folks who have paid.
The list is open again. Check the first post for an update.
If you filled out the form and haven’t paid by December 20, I will be moving on to other people on the list.
2 Likes
Thank you @Kyle_Tuck. I’ve received his oculink adapter and I’m waiting on a power supply for the DEG1. I hoping to get it by the weekend in order to test everything out.
For the guys that received Kyle’s adapter, did you put down a thermal pad for the oculink?
1 Like
I did not, and I’ve run mine hard for hours straight under load and not experienced any issues.
1 Like
I also didn’t use a thermal pad. No issues so far using the DEG1.
Reached out to nrp and sent one his way last week.
One of the folks in our SF office should be able to test it soon.
5 Likes
Very nice. Better come with all that FW cred
4 Likes
Got my adapter in. The adapter and plate fit perfectly. I wont be able to test GPU performance and reliability until after the first, but I will post results when I do. I will be using an RX 7900 xtx.
2 Likes

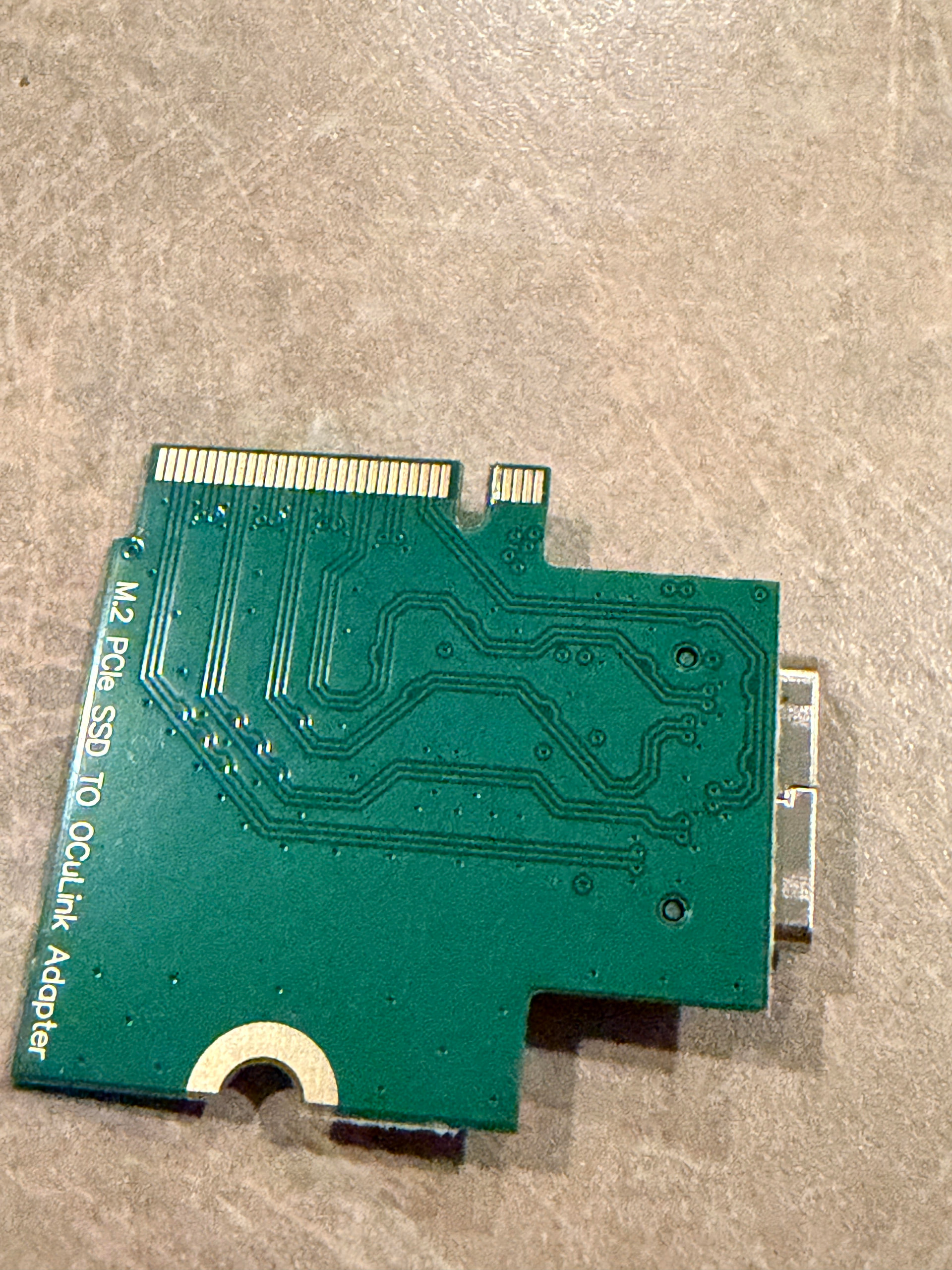

I have followed up with Kyle directly already and he suggested getting some feedback on the 5th pad on the right side of the key. Looks a little funky and I won’t have my expansion bay and m.2 board until after Christmas so I won’t be able to test it, but given how it looks, what would you guys recommend? I am on the side of thinking it’s potentially fine, it doesn’t seem to cross over onto another pad but we both wanted to get your guys’s opinions on it before we place it into hardware.
1 Like
My .2 cents, will likely be fine. Should still provide connectivity. Won’t know real results until you can actually test it though.
1 Like
On the plus side, got Kyle’s brilliant adapter all hooked in and, for the most part, it just works - plug it in and boot up and the card comes up fine! Using the ADT-Link F9G and a 7900 XTX:
sudo lspci -vvs 03:00.0
03:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 31 [Radeon RX 7900 XT/7900 XTX/7900 GRE/7900M] (rev c8) (prog-if 00 [VGA controller])
DeviceName: Realtek
Subsystem: Framework Computer Inc. Device 0005
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 128
IOMMU group: 15
Region 0: Memory at 5800000000 (64-bit, prefetchable) [size=32G]
Region 2: Memory at 6000000000 (64-bit, prefetchable) [size=256M]
Region 4: I/O ports at a000 [size=256]
Region 5: Memory at 90d00000 (32-bit, non-prefetchable) [size=1M]
Expansion ROM at 90e20000 [disabled] [size=128K]
Capabilities: [48] Vendor Specific Information: Len=08 <?>
Capabilities: [50] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [64] Express (v2) Legacy Endpoint, IntMsgNum 0
DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset- TEE-IO-
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 256 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 16GT/s, Width x16, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, LnkDisable- CommClk+
ExtSynch- ClockPM+ AutWidDis- BWInt- AutBWInt- FltModeDis-
LnkSta: Speed 16GT/s, Width x16
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR+
10BitTagComp+ 10BitTagReq+ OBFF Not Supported, ExtFmt+ EETLPPrefix+, MaxEETLPPrefixes 1
EmergencyPowerReduction Form Factor Dev Specific, EmergencyPowerReductionInit-
FRS-
AtomicOpsCap: 32bit+ 64bit+ 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-
AtomicOpsCtl: ReqEn+
IDOReq- IDOCompl- LTR+ EmergencyPowerReductionReq-
10BitTagReq+ OBFF Disabled, EETLPPrefixBlk-
LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-
LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported, FltMode-
Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
Address: 00000000fee00000 Data: 0000
Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
Capabilities: [150 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP-
ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP-
ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+
ECRC- UnsupReq- ACSViol- UncorrIntErr+ BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr- HeaderOF-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr- HeaderOF-
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [200 v1] Physical Resizable BAR
BAR 0: current size: 32GB, supported: 256MB 512MB 1GB 2GB 4GB 8GB 16GB 32GB
BAR 2: current size: 256MB, supported: 2MB 4MB 8MB 16MB 32MB 64MB 128MB 256MB
Capabilities: [240 v1] Power Budgeting <?>
Capabilities: [270 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Capabilities: [2a0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Capabilities: [2d0 v1] Process Address Space ID (PASID)
PASIDCap: Exec+ Priv+, Max PASID Width: 10
PASIDCtl: Enable+ Exec- Priv-
Capabilities: [320 v1] Latency Tolerance Reporting
Max snoop latency: 1048576ns
Max no snoop latency: 1048576ns
Capabilities: [410 v1] Physical Layer 16.0 GT/s
Phy16Sta: EquComplete+ EquPhase1+ EquPhase2+ EquPhase3+ LinkEquRequest-
Capabilities: [450 v1] Lane Margining at the Receiver
PortCap: Uses Driver-
PortSta: MargReady+ MargSoftReady-
Kernel driver in use: amdgpu
Kernel modules: amdgpu
So immediately it seems to be auto configuring for its max link speed which is awesome.
Edit: updated mesa and rebooted and holy cow, it does perform so much better than USB4. Seems rock solid too.
4 Likes
That’s awesome! So that’s at least one more config that seems to work.
- ADT-Link F9G
- Minisforum DEG1
- Aoostar AG02
4 Likes
